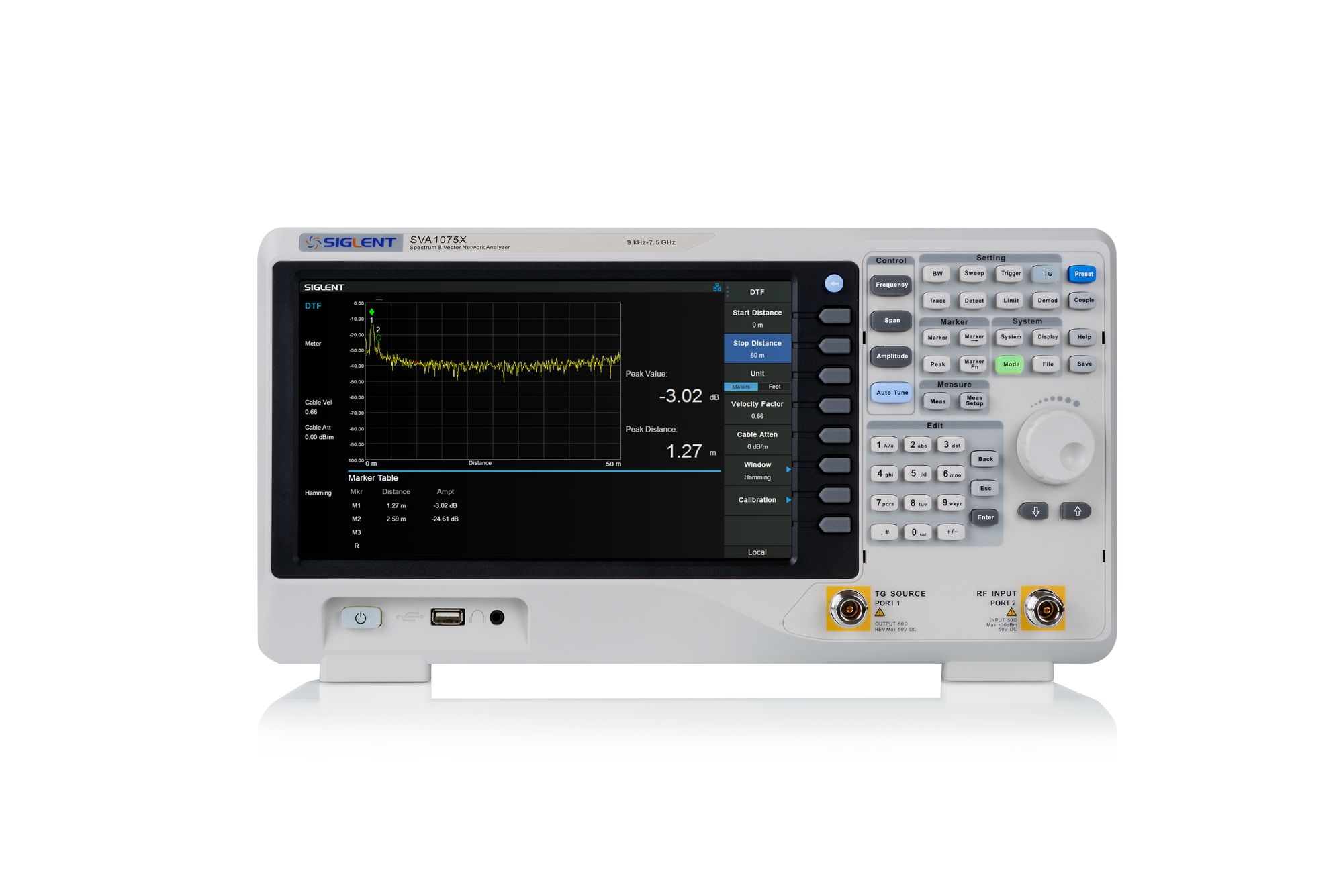

SVA1000X - Spectrum & Vector Network Analyzers

  • Vector Network Analysis from 100 kHz ~ 7.5 GHz (Standard）
  • Distance-to-fault (Optional)
  • Frequency Range from 9 kHz to 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level  (Typ.)
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
Model SVA1015X SVA1032X
Frequency Range 9 kHz ~ 1.5 GHz 9 kHz ~ 3.2 GHz
Resolution Bandwidth 1 Hz ~ 1 MHz 1 Hz ~ 1 MHz
Displayed Average Noise Level -156 dBm/Hz -161 dBm/Hz
Phase Noise <-98 dBc/Hz <-98 dBc/Hz
Third-order +8 dBm +10 dBm
Amplitude Precision <1.2 dB <0.7 dB
Tracking Generator 5 MHz - 1.5 GHz 100 kHz - 3.2 GHz
Calibration Piece Option Option
Distance To Fault Option Option
Advanced Measurement Kit(Opt.) CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
EMI Pre-compliance Test Kit(Opt.) EMI Filter and Quasi-Peak Detector, Easy Spectrum software
Modulation Types(Opt.) ASK，FSK，AM，FM，QAM，PSK，MSK
Communication Interface LAN, USB Device, USB Host(USB-GPIB)
Remote Control Capability SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet
Remote Controller NI-MAX, Web Browser, Easy Spectrum software, File Explorer
SVA1000X - Spectrum & Vector Network Analyzers
HK$11,429.00 HKD
Add-ons
SVA1000X-AMK - Advanced measurement kit ,including ACPR, CHPower, OBW and so on.
HK$3,268.00 HKD
0
HK$0.00 HKD
SVA1000X - Spectrum & Vector Network Analyzers
HK$11,429.00 HKD
0
HK$0.00 HKD
SVA1000X-DTF - Distance To Fault
HK$2,254.00 HKD
0
HK$0.00 HKD
SVA1000X-DMA - Digital Modulation Analysis Function,including ASK, FSK, MSK, xPSK, xQAM
HK$3,892.00 HKD
0
HK$0.00 HKD
SVA1000X-AMA - Analog Modulation Analysis Function,including AM¡AFM
HK$2,566.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$11,429.00 HKD
