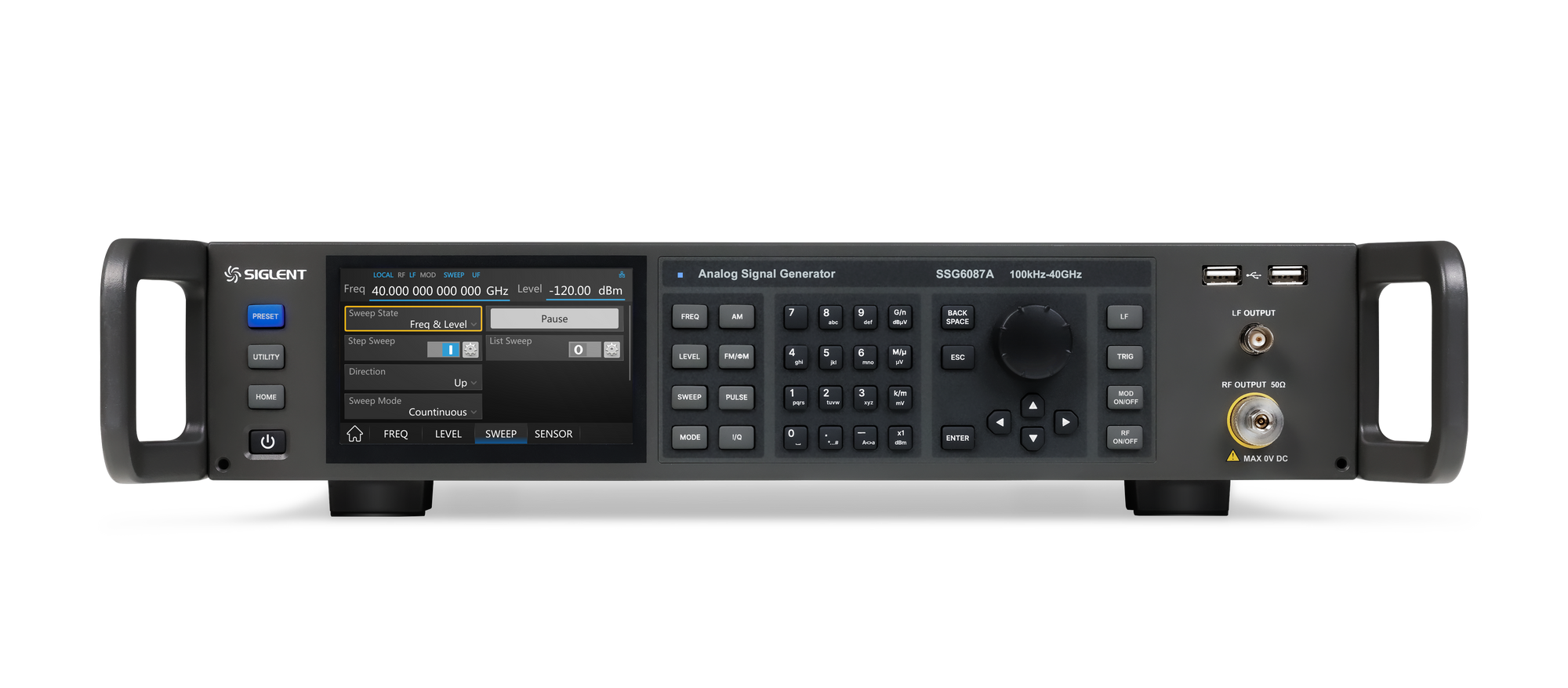

SSG6000A - Series Microwave Analog Signal Generator

  • Frequency up to 13.6 GHz/ 20 GHz/ 40 GHz
  • Level setting range: -130 dBm ~ 24 dBm
  • Phase Noise: -135 dBc / Hz @ 1 GHz, 10 kHz offset (typ.)
  • Level error ≤ 0.7 dB (typ.)
  • Standard AM/FM/PM modulation
  • Standard OCXO and step attenuator (0 to 110 dB, 10dB step)
  • Pulse modulation and pulse train generator (opt.)
Frequency Range 100 kHz ~ 13.6/20/40 GHz
Frequency resolution 0.001 Hz
Amplitude resolution 0.01 dB
Phase Noise -135 dBc/Hz  @ 1 GHz, offset 20 kHz (typ.)
Level error ≤  0.7 dB (typ.)
AM/FM/PM modulation Standard
Level setting range - 130 dBm ~ + 24 dBm
Maximum output power + 22 dBm
Other characteristics Pulse modulation, Pulse generator, Pulse train generator
Display 5 inch capacitance touch screen, RGB (800*480)
Interface Standard: USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet); Option: GPIB
SSG6000A - Series Microwave Analog Signal Generator
HK$192,999.00 HKD
Add-ons
SSG6080A-PU - Pulse modulation (software license)
HK$20,904.00 HKD
0
HK$0.00 HKD
SSG6080A-PT - Pulse train generator (software license)
HK$20,904.00 HKD
0
HK$0.00 HKD
SSG6080A-F85 - Upgrade frequency output range from 13.6 GHz to 20 GHz
HK$40,170.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$192,999.00 HKD
