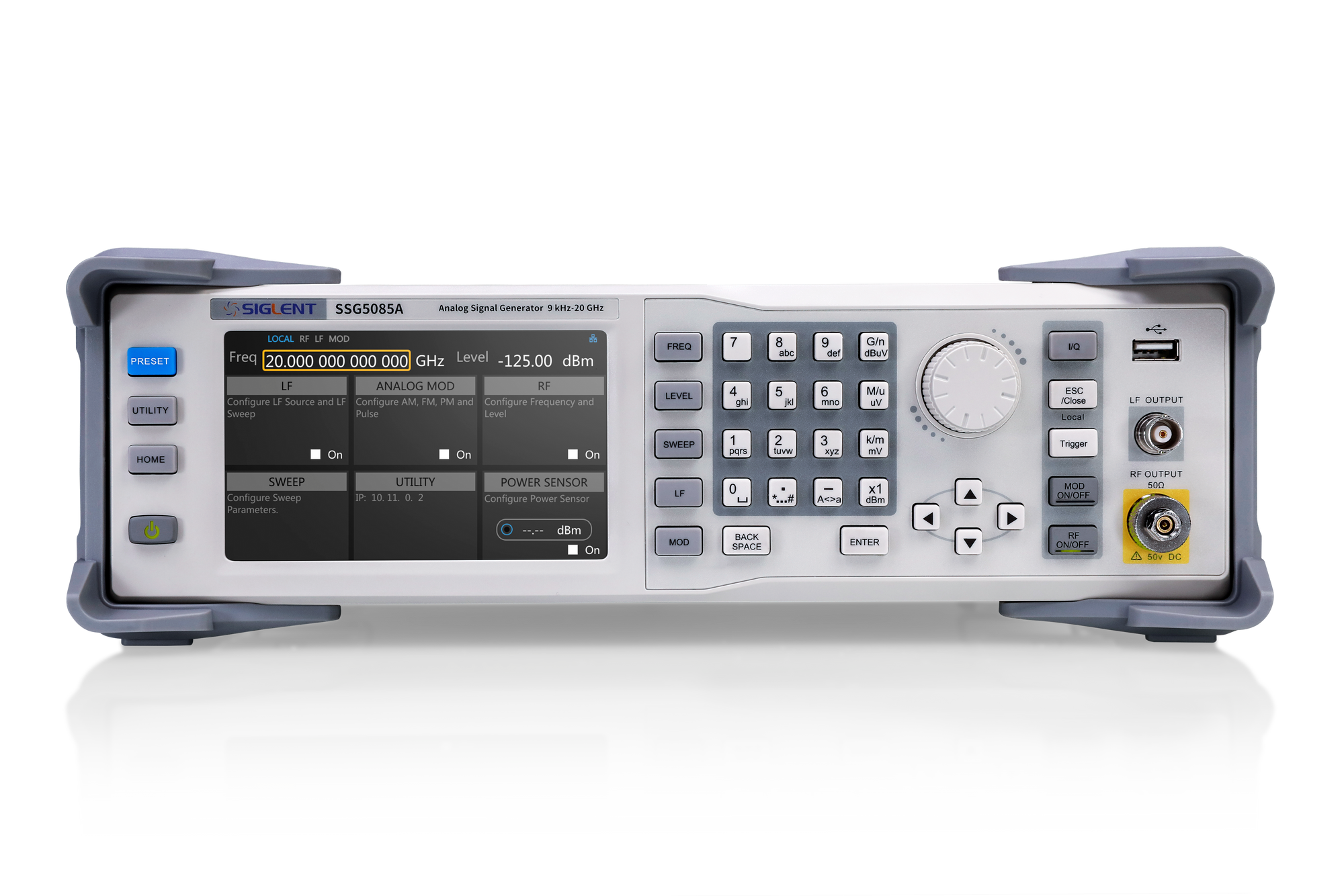

SSG5000A - Series RF Signal Generator

  • Frequency up to 13.6 GHz / 20 GHz
  • 0.001 Hz frequency setting resolution
  • Level setting range: -130 dBm ~ 25 dBm
  • Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
  • Level error ≤ 0.7 dB (typ.)
  • Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
  • Single pulse, double pulse and pulse train generator (opt.)
Frequency range CW MODE 9 kHz~ 13.6 GHz/20 GHz
Frequency resolution 0.001 Hz
Amplitude Resolution 0.01 dB
Phase noise -120 dBc/Hz offset 20 kHz @1 GHz（typ.）
Level error ≤0.7 dB（typ.）
modulation AM & FM & PM modulation, pulse modulation,
Level setting range -130 dBm~+25 dBm
Maximum output power +23 dBm
other characteristics Pulse generator，Pulse train generator
Display  5 inch capacitance touch screen, RGB (800*480)
Interface  Standard：USB-HOST, USB DEVICE (USBTMC), LAN (VXI-11,10/100Base，RJ-45)； Option：GPIB
SSG5000A - Series RF Signal Generator
HK$126,919.00 HKD
Add-ons
SSG5080A-PU - Pulse modulation (software license)
HK$17,706.00 HKD
0
HK$0.00 HKD
SSG5080A-PT - Pulse train generator (software license)
HK$17,706.00 HKD
0
HK$0.00 HKD
SSG5080A-LP - 110dB Attenuator module ¡]hardware, assembled and calibrated in factory only)
HK$34,164.00 HKD
0
HK$0.00 HKD
SSG5080A-F85 - Upgrade 13.6 GHz to 20 GHz (software license)
HK$29,016.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$126,919.00 HKD
