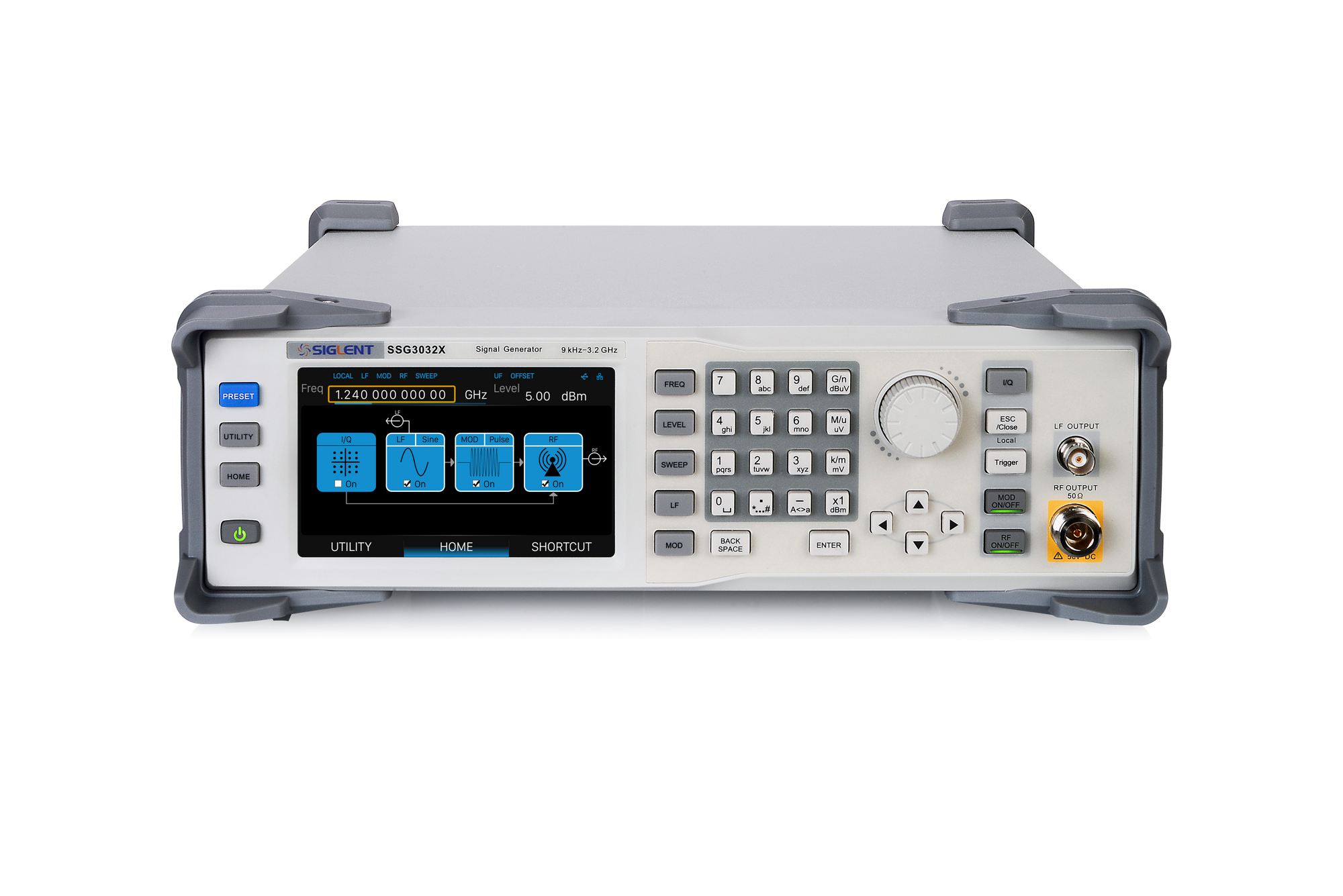

SSG3000X - Series RF Generator

  • Frequency up to 2.1 GHz / 3.2 GHz
  • Maximum level up to +20 dBm  (typ.)
  • Level output from -110 dBm to +13 dBm
  • Level accuracy ≤0.7 dB  (typ.)
  • Standard AM & FM & PM & pulse modulation
  • Pulse train Generator  (optional)
  • External IQ signal Generator （optional）
Frequency(Max.) 2.1 GHz/3.2 GHz
Frequency Resolution 0.01 Hz
Level setting range +13 dBm ~ -110 dBm
Phase Noise -110 dBc/Hz @1 GHz ,offset 20 kHz (typ.)
Level Accuracy 0.7 dB (typ.)
Modulation types AM/FM/PM,Pulse,I/Q
Display TFT LCD, RGB (800*480), 5 inch capacitive touch screen
Interface Standard：USB-HOST, USB DEVICE (USBTMC), LAN (VXI-11,Socket,Telnet)；
Option：GPIB
SSG3000X - Series RF Generator
HK$17,999.00 HKD
Add-ons
SSG3000X-PT - Pulse Train Generator¡]Option¡^
HK$6,856.00 HKD
0
HK$0.00 HKD
SSG3000X-21BW32 - Upgrade 2.1 GHz to 3.2 GHz
HK$17,932.00 HKD
0
HK$0.00 HKD
SSG3000X-IQE-21BW32 - Upgrade 2.1 GHz to 3.2 GHz ¡]With EIQ Function¡^
HK$17,932.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$17,999.00 HKD
