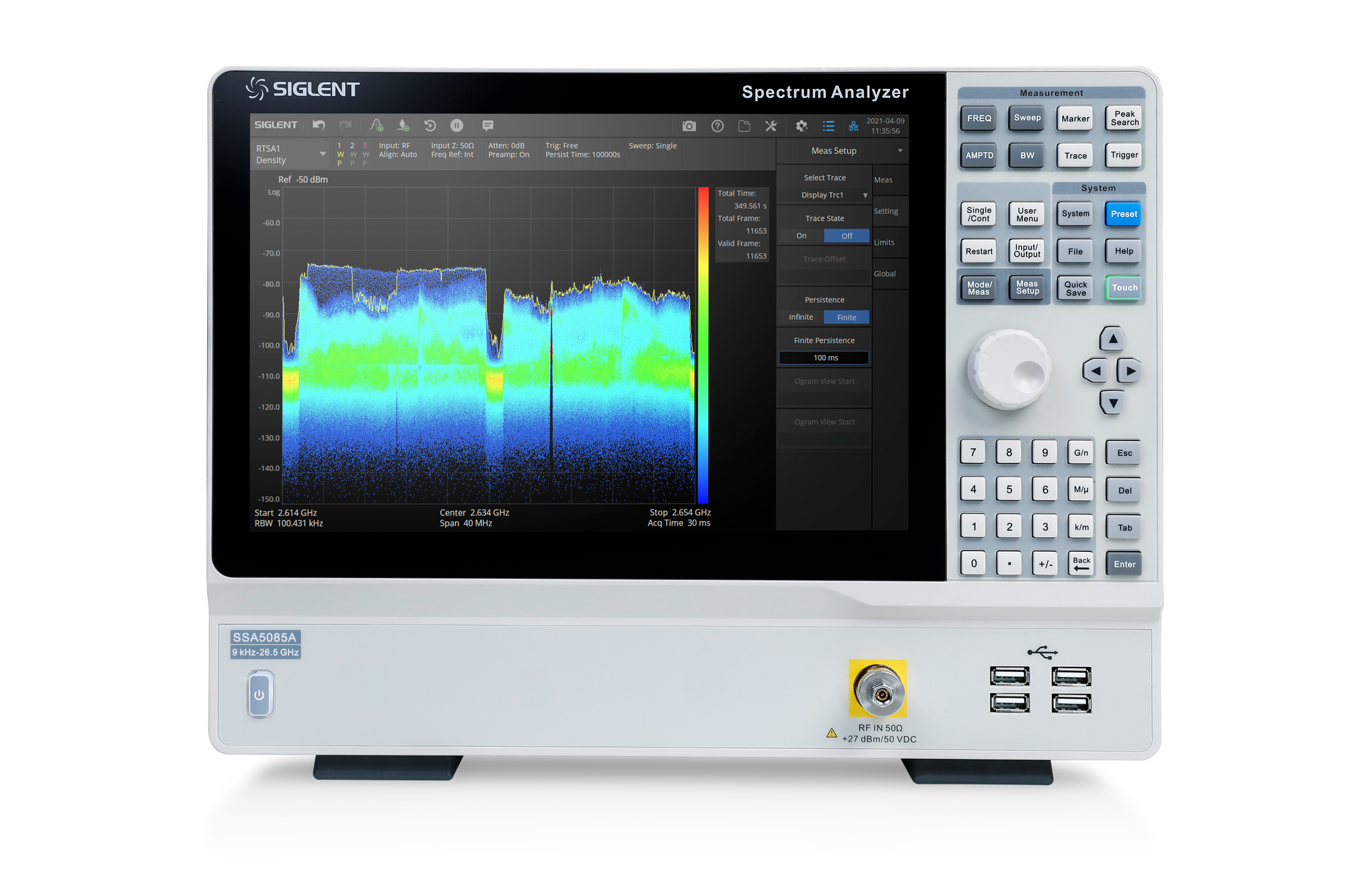

SSA5000A - Spectrum Analyzer

  • Frequency Range from 9 kHz up to 13.6 /26.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
  • 25 MHz/40 MHz Analysis Bandwidth
  • Analog Modulation Analysis and Vector Digital Modulation Analysis
  • Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
Frequency Range SSA5083A：9 kHz~13.6 GHz
SSA5085A：9 kHz~26.5 GHz
Resolution Bandwidth 1 Hz~10 MHz
Displayed Average Noise Level -165 dBm/Hz
SSB Phase Noise -105 dBc/Hz
Analysis Bandwidth 40 MHz
Frequency resolution 1 Hz
Advanced Measurement (opt.) CHP， ACPR， OBW， CNR， Harmonic， TOI， Monitor
Modulation Analysis (opt.) AM， FM， ASK， FSK， MSK， PSK， QAM
Communication Interface LAN， USB Device， USB Host(USB-GPIB)
Remote Control Capability SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/I-MAX， Web Browser， Easy Spectrum software， File Explorer
Display TFT LCD, 1200 ×800, 12.1 inch capacitive multi-touch screen
SSA5000A - Spectrum Analyzer
HK$141,009.00 HKD
Add-ons
SSA5000-F5 - SSA5083A upgrade to SSA5085A (software license)
HK$29,016.00 HKD
0
HK$0.00 HKD
SSA5000-B40 - 40 MHz analysis bandwidth (software license)
HK$19,968.00 HKD
0
HK$0.00 HKD
SSA5000-RTA1 - Real-Time Spectrum Analysis (software license)
HK$29,640.00 HKD
0
HK$0.00 HKD
SSA5000-AMK - Advanced Measurement Kit (software license)
HK$12,558.00 HKD
0
HK$0.00 HKD
SSA5000-AMA - Analog Modulation Analysis: AM, FM, PM (software license)
HK$6,630.00 HKD
0
HK$0.00 HKD
SSA5000-DMA - Digital Modulation Analysis: ASK, FSK, MSK, PSK, QAM (software license)
HK$8,112.00 HKD
0
HK$0.00 HKD
SSA5000-P3 - Pre-amplifier, 9 kHz ~ 13.6 GHz (software license)
HK$8,736.00 HKD
0
HK$0.00 HKD
SSA5000-P5 - Pre-amplifier, 9 kHz ~ 26.5 GHz (software license)
HK$14,664.00 HKD
0
HK$0.00 HKD
SSA5000-IFO - IF output (software license)
HK$5,070.00 HKD
0
HK$0.00 HKD
SSA5000-IQA - Real-Time data capture (software license)
HK$9,516.00 HKD
0
HK$0.00 HKD
SSA5000-BT - Bluetooth signal measurement (software license)
HK$17,082.00 HKD
0
HK$0.00 HKD
SSA5000-PU - Pulse signal measurement (software license)
HK$21,060.00 HKD
0
HK$0.00 HKD
SSA5000-PN - Phase noise measurement (software license)
HK$8,034.00 HKD
0
HK$0.00 HKD
SSA5000-NF - Noise figure measurement (software license)
HK$17,082.00 HKD
0
HK$0.00 HKD
SSA5000-EMI - EMI measurement mode (software license)
HK$6,630.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$141,009.00 HKD
