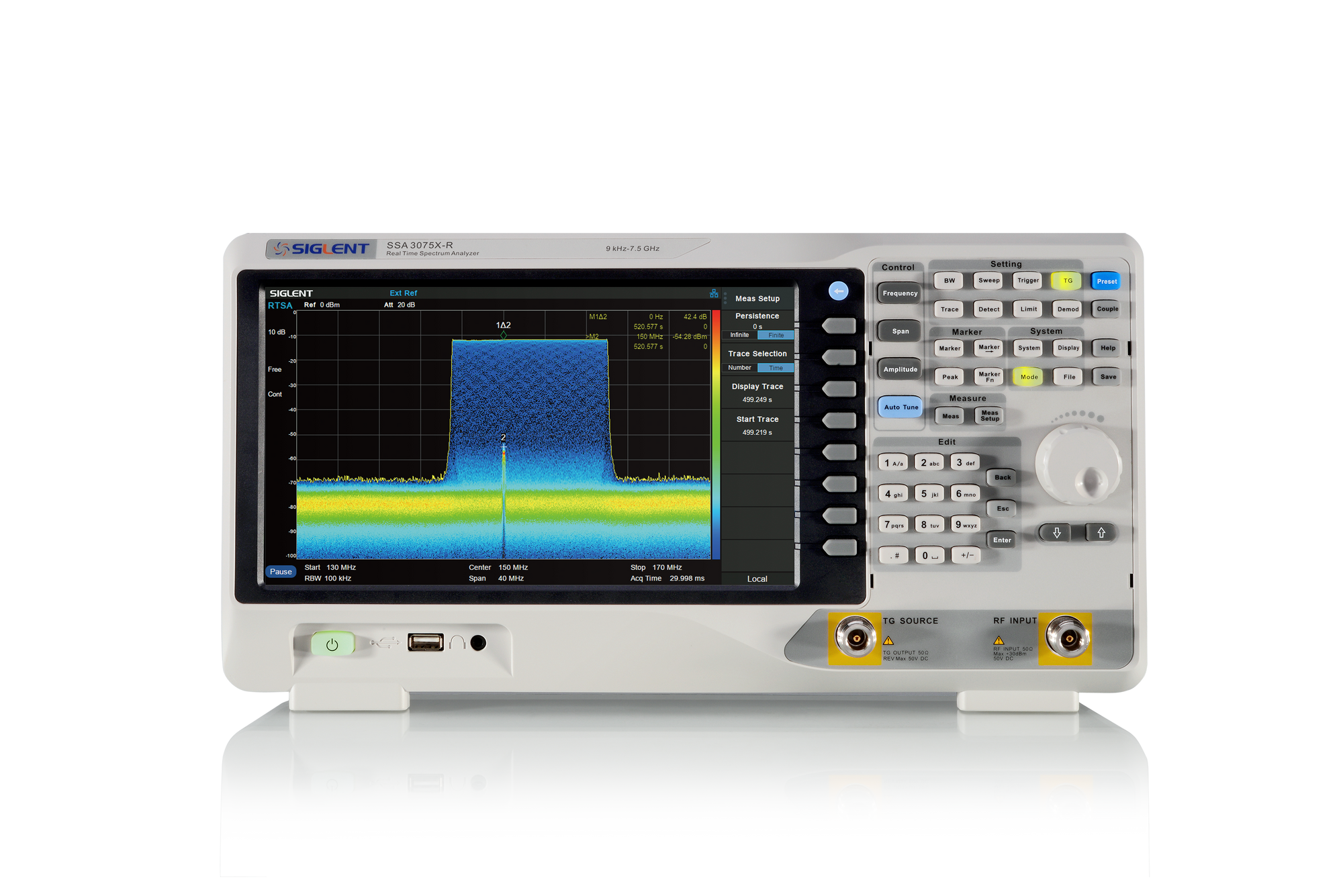

SSA3000X-R - Spectrum Analyzer
| Frequency Range | SSA3032X-R：9 kHz ~ 3.2 GHz SSA3050X-R：9 kHz ~ 5.0 GHz SSA3075X-R：9 kHz ~ 7.5 GHz |
| Resolution Bandwidth | 1 Hz ~ 3 MHz |
| Displayed Average Noise Level | -165 dBm/Hz |
| SSB Phase Noise | < -98 dBc/Hz@1 GHz |
| Real Time Band Width | 25 MHz, 40 MHz (Option) |
| Tracking Generator | SSA3032X-R：100 kHz ~ 3.2 GHz SSA3050X-R：100 kHz ~ 5.0 GHz SSA3075X-R：100 kHz ~ 7.5 GHz |
| Total Amplitude Accuracy | < 0.7 dB |
| SFDR | 60 dB |
| 100% POI | 7.20 μs |
| RTSA Measurement | Density, Spectrogram, 3D, PvT |
| Touch Screen | Multi Touch, Mouse and Keyboard supported |
| Advanced Measurement | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor |
| Modulation Analysis | AM, FM, ASK, FSK, MSK, PSK, QAM |
| Reflection Measurement | VSWR measurement using Reflection Bridge |
| EMI Test | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line |
| Communication Interface | LAN, USB Device, USB Host (USB-GPIB) |
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet |
| Remote Controller | NI-MAX, Web Browser, Easy Spectrum software, File Explorer |
| VNA Measurement | Vector S11, Vector S21 |
| Distance to Fault | Standard |
