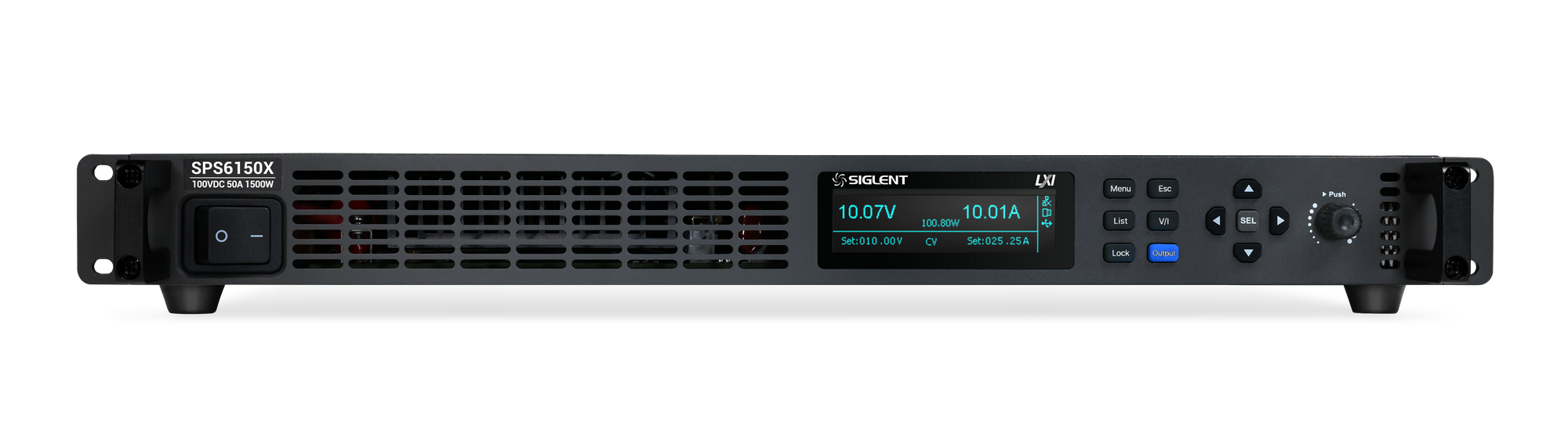

SPS6000X - Wide Range Programmable Switching DC Power Supply

  • Rated Voltage: 200 V / 100 V
  • Rated Current: 25 A / 50 A
  • Rated power: 1500 W
  • Setting and readback resolution: 10 mV, 10 mA
  • OVP, OCP, LPP, OTP protection
Output SPS6225X   200V/25A/1500W
SPS6150X   100V/50A/1500W
Display 3.12-inch OLED display
Resolution  10mV/10mA
Setting Accuracy Current: 0.2%±30mA
Voltage: 0.1%±10mV
Readback Accuracy Current: 0.2%±40mA
Voltage: 0.1%±20mV
C.V Mode
Line Regulation SPS6225X：40mV
SPS6150X：5mV
Load Regulation SPS6225X：100mV
SPS6150X : 50mV
Ripple and Noise
  SPS6225X SPS6150X
Vpp 220 mV 120 mV
Vrm 39 mV 30 mV
Series/Parallel Mode
Max. units in series ≥2　SPS6225X
≥4　SPS6150X
Max. units in parallel  5
CC/CV priority mode Support
Web remote control Support
List function Support, up to 50 steps, edit locally or import from USB memory
SPS6000X - Wide Range Programmable Switching DC Power Supply
HK$15,444.00 HKD
Add-ons
Add-ons subtotal HK$0.00 HKD
Grand total HK$15,444.00 HKD
