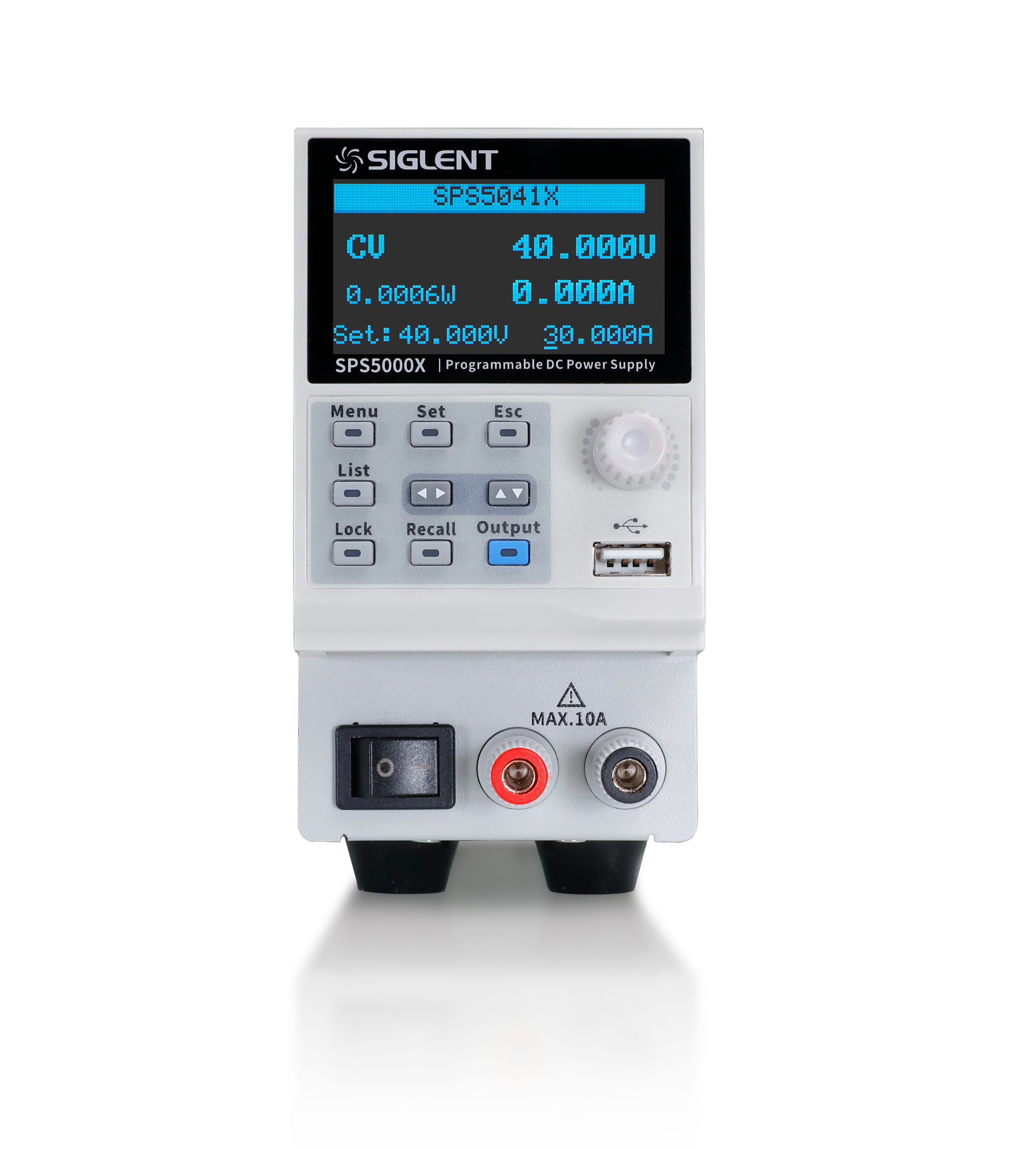

SPS5000X - Wide Range Programmable Switching DC Power Supply

  • Rated Output Voltage：40V, 50V, 80V, 160V
  • Rated Output Power：180W, 360W, 720W, 1080W
  • Wide range of output voltage and current, high efficiency power supply
  • CV, CC priority mode selection, better protection of equipment under test
  • Configurable three-channel timing output
  • 170° wide viewing angle OLED screen, remote web control
Output channel 1/2/3 channel; 40 V/50 V/80 V/160 V; 180 W/360 W/720 W/1080 W
Display 2.4-inch OLED high brightness liquid crystal display
Resolution   1 mV/1 mA
Setting Accuracy Voltage Accuracy:
40/50/80 V model 0.1%±10 mV;
160 V model 0.1%±100 mV;
Current Setting Accuracy:
40 V   30/60/90 A/   model 0.1%±30/60/100 mA
50 V    model 0.1%±10 mA
80 V   15/30/45 A    model 0.1%±10/30/40 mA
160 V 7.5/15/22.5 A model 0.1%±5/15/20 mA
Readback Accuracy Voltage Readback Accuracy:
40/50/80 V model 0.1%±20 mV
160 V model 0.1%±100 mV
Current Readback Accuracy:
40 V 30/60/90 A model 0.1%±40/70/100 mA
50 V    model 0.1%±20 mA
80 V 15/30/45 A model 0.1%±20/40/50 mA
160 V 7.5/15/22.5 A model 0.1%±5/15/20 mA
C.V Mode
Line Regulation 40 V model 18 mV
50 V model 3 mV
80 V model 40 mV
160 V model 80 mV
(Constant load, 90 ~ 132Vac or 170 ~ 265Vac)
Load Regulation 40 V model 20 mV
50 V model 10 mV
80 V model 40 mV
160 V model 80 mV
(From no load to full load,  constant input voltage)
Ripple and Noise p-p
50 V model 45 mV
40/80/160V 360W model 60 mV
40/80/160V 720W model 80 mV
40/80/160V 1080W model 100 mV
r.m.s
50 Vmodel5 mV
40/80V 360W model 7 mV
40/80V 720W model 11 mV
40/80V 1080W model 14 mV
160V 360W model 12 mV
160V 720W model 15 mV
160V 1080W model 20 mV
Transient response time 40/50 /80 V model 1 ms
160V model 2 ms
C.C Mode
Line Regulation 50 V model 8 mA
40 V model 40/75/110 mA
80 V model 18/32/45 mA
160 V model 12/19/26 mA
Load Regulation 50 V model 10 mA
40 V model 40/75/110 mA
80 V model 18/32/45 mA
160 V model 12/19/26 mA
Ripple and Noise r.m.s
50 V model 10 mA
40 V model 72/144/216 mA
80 V model 27/54/81 mA
160 V model 15/30/45 mA
Series/Parallel Mode
Max. units in series 2
Max. units in parallel 3
CC/CV priority mode  Support
Web remote control Support
List function Support, up to 50 steps, edit locally or import from USB memory
Rack mount size 1/2,1/3,1/6
