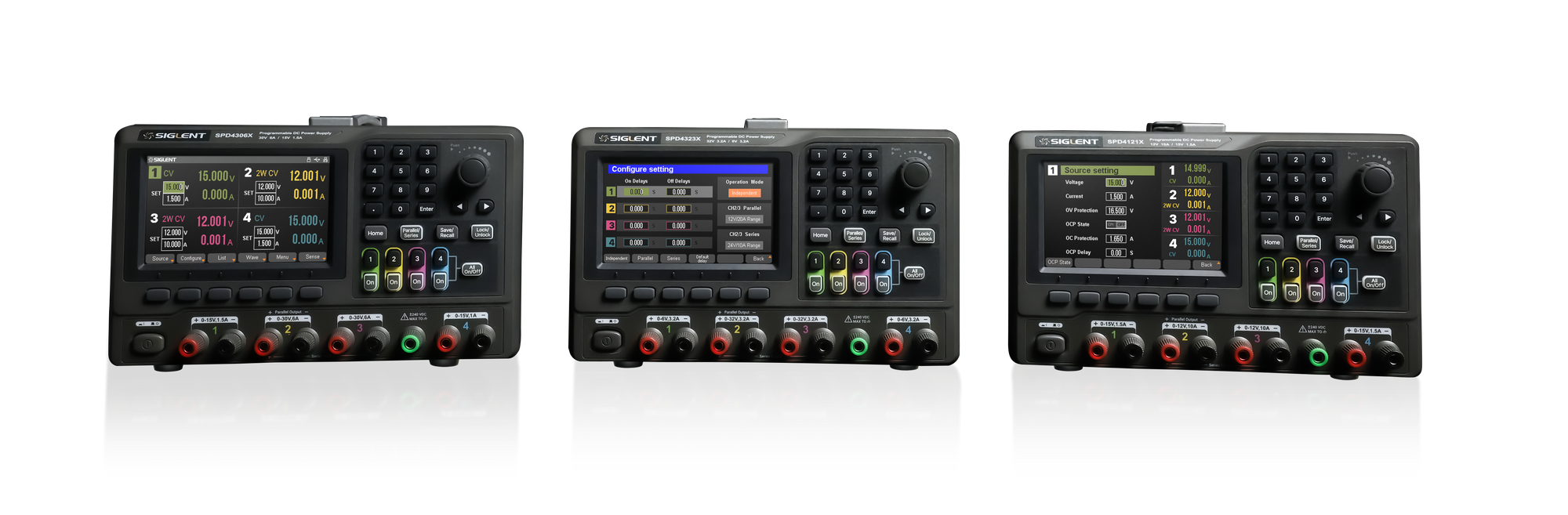

SPD4000X - Programmable Linear DC Power Supply

  • Four independent outputs
  • Max. Voltage: 15V, 30V, 32V ,  Max. Current: 3.2A, 6A, 10A
  • Rated output power: 240W, 285W, 400W
  • 5-digit voltage and current display with minimum resolution of 1mV, 1mA
  • Clear graphical interface with waveform and timer display modes
  • Support remote voltage compensation sense function
Channel output SPD4323X：6V/3.2A, 32V/3.2A, 32V/3.2A, 6V/3.2A
SPD4121X:  15V/1.5A, 12V/10A, 12V/10A, 15V/1.5A
SPD4306X:  15V/1.5A, 30V/6A, 30V/6A, 15V/1A
Display 4.3" TFT-LCD
5-digit voltage and current display
Resolution 1 mV/1 mA
Setting accuracy voltage ±（0.03% of reading+10）mV
current ±（0.3% of reading+10）mA
Readback accuracy voltage ±（0.03% of reading+10）mV
current ±（0.3% of reading+10）mA
Parallel Mode
Line Regulation 0.01%+5 mV
Load Regulation 0.01%+50 mV
Constant Voltage Mode
Line Regulation 0.01%+2 mV
Load Regulation 0.01%+10 mV（Two-wire mode）
0.01%+2 mV （Four-wire mode）
Ripple&Noise 350μVrms/5mVpp（5Hz - 1MHz）
Recovery Time 50 μs
Constant Current Mode
Line Regulation 0.1%+3 mA
Load Regulation 0.1%+3 mA
Ripple&Noise 2 mArms
Series Mode
Line Regulation 0.01%+5 mV
Load Regulation < 100/150/200 mV


SPD4000X - Programmable Linear DC Power Supply
HK$5,148.00 HKD
