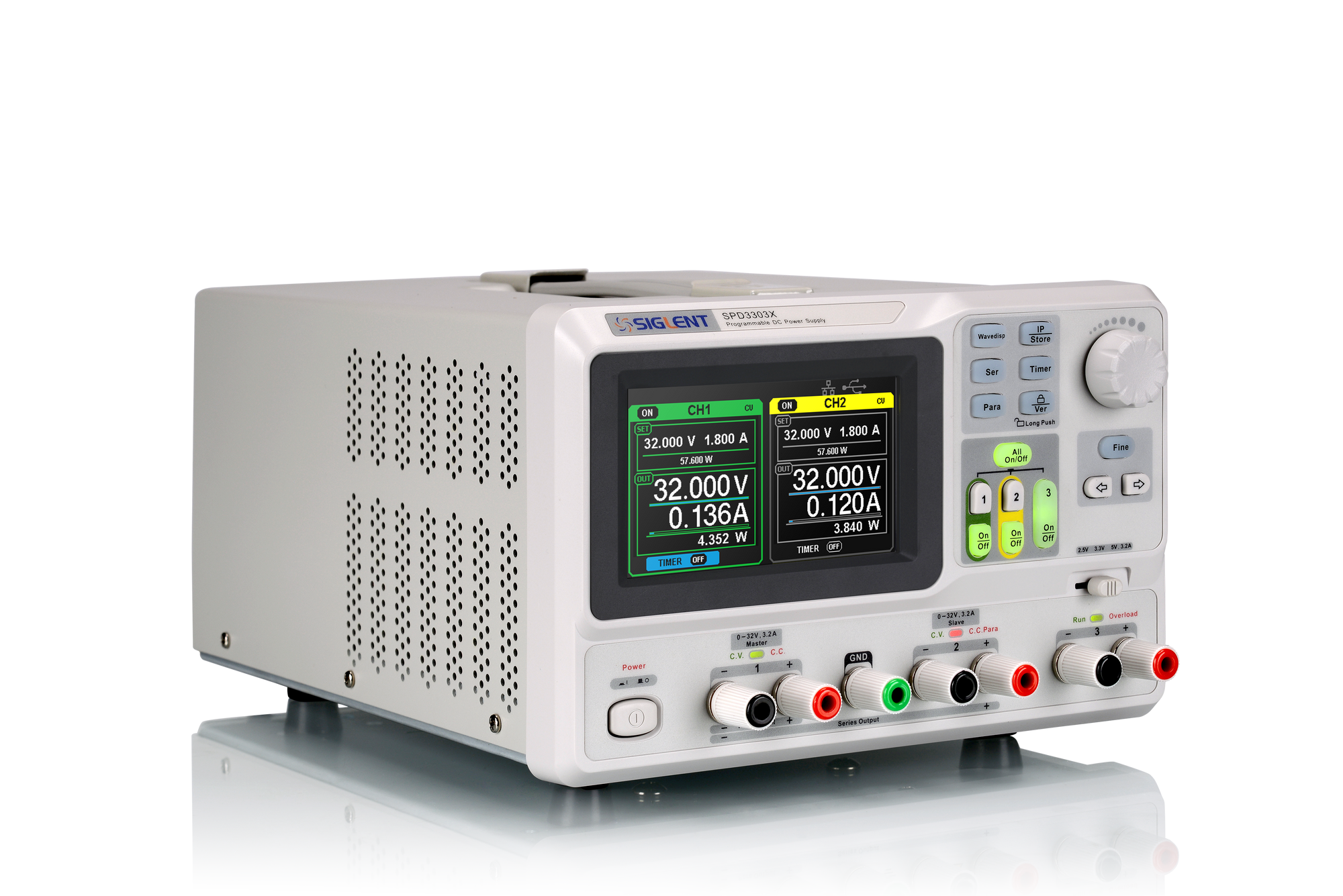

SPD3303X/X-E - Programmable DC Power Supply

  • 3 independently controlled and isolated outputs: Two 32 V/3.2 A, one 2.5 V / 3.3 V / 5 V / 3.2 A × 1, total 220 W
  • 5 digit Voltage/4 digit Current Display, Minimum Resolution: 1 mV/1 mA  (SPD3303X)
  • Timing function provides programmed output steps
  • 4.3 inch true color TFT- LCD 480 x 272 display
  • 3 types of output modes: independent, series  (60 V max), and parallel  (6.4 A max)
Channel CH1:0 ～ 32 V,0 ～ 3.2 A
CH2:0 ～ 32 V,0 ～ 3.2 A
CH3:2.5/3.3/5.0 V,3.2 A
Display SPD3303X-E：
4.3 inch true color TFT-LCD 4 digits voltage 3 digits current
SPD3303X：
4.3 inch true color TFT-LCD 5 digits voltage 4 digits current
Resolution SPD3303X-E：10 mV/10 mA
SPD3303X：1 mV/1 mA
Parallel Mode
Line Regulation ≤ 0.01%+3 mV
Load Regulation ≤ 0.01%+3 mV
Constant Voltage Mode
Line Regulation ≤ 0.01%+2 mV
Load Regulation ≤ 0.01%+2 mV
Ripple&Noise ≤ 300 μVrms
Recovery Time ＜ 50 μs（50% load change， minimum load 0.5 A）
Constant Current Mode
Line Regulation ≤ 0.2%+3 mA
Load Regulation ≤ 0.2%+3 mA
Ripple&Noise ≤ 3 mArms
Series Mode
Line Regulation ≤ 0.01%+5 mV
Load Regulation ≤ 300 mV


SPD3303X/X-E - Programmable DC Power Supply
HK$3,034.00 HKD
Add-ons
Add-ons subtotal HK$0.00 HKD
Grand total HK$3,034.00 HKD
