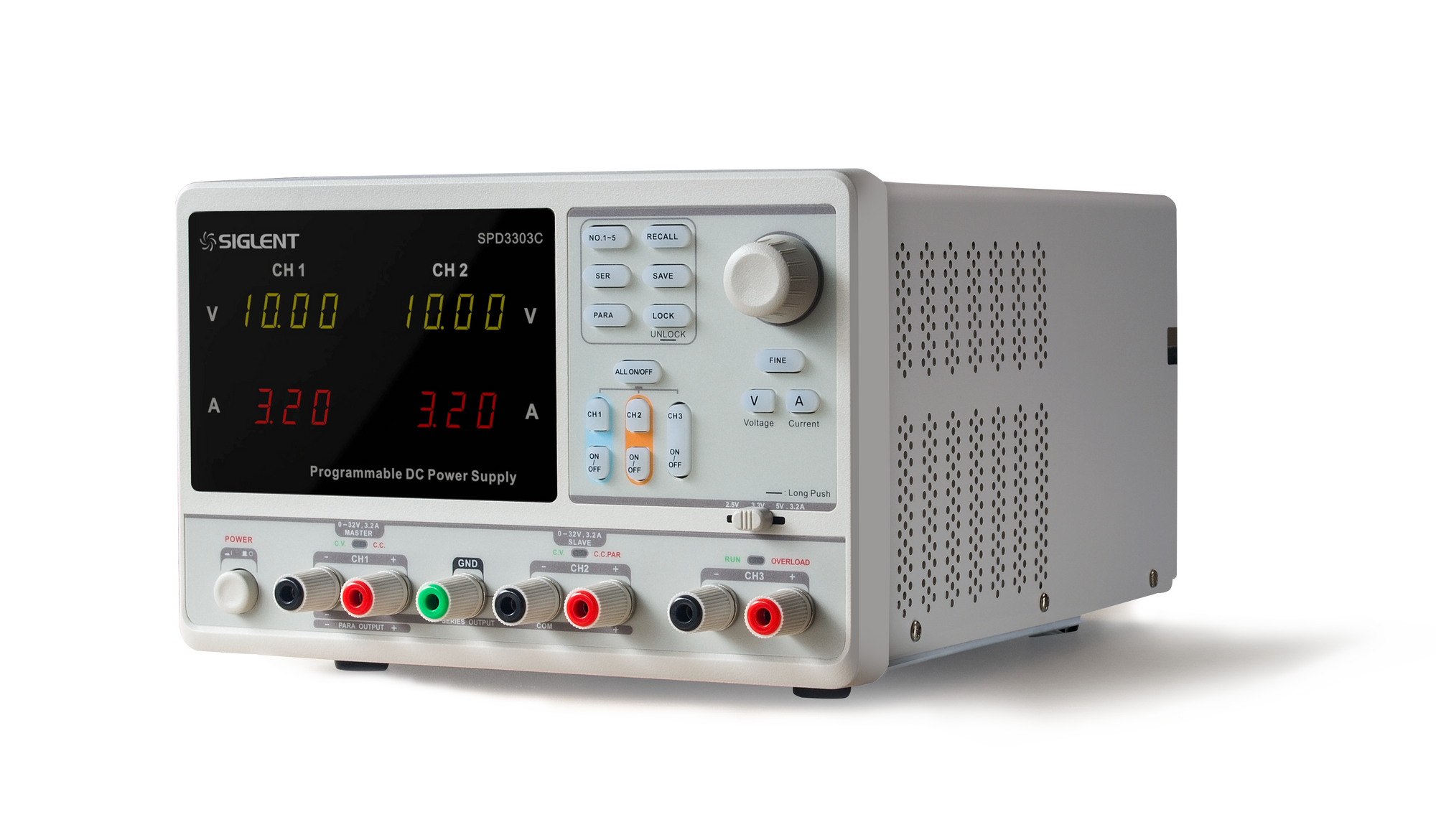

SPD3303C - Programmable DC Power Supply

  • 3 independent high precision outputs: two 32 V /3.2 A, one 2.5 V / 3.3 V / & 5 V / 3.2 A, total 220 W power
  • 4 digit voltage and 3 digit current display, min resolution: 10 mV, 10 mA
  • Three output modes: independent, series and parallel
  • 100/120/220/230 V compatible design, to meet the needs of various power grids
Channel CH1:0 ～ 32 V,0 ～ 3.2 A
CH2:0 ～ 32 V,0 ～ 3.2 A
CH3:2.5/3.3/5.0 V,3.2 A
Display 32 V full scale 4 digits 3.2 A full scale 3 digits LED display
Resolution 10 mV/10 mA
Constant Current Mode
Line Regulation ≤ 0.2%+3 mA
Load Regulation ≤ 0.2%+3 mA
Ripple&Noise ≤ 3 mArms
Constant Voltage Mode
Line Regulation ≤ 0.01%+3 mV
Load Regulation ≤ 0.01%+3 mV
Ripple&Noise ≤ 1 mVrms（5 Hz ～ 1 MHz）
Recovery Time ＜ 50μs（50% load change， minimum load 0.5A）
Parallel Mode
Line Regulation ≤ 0.01%+3 mV
Load Regulation ≤ 0.01%+3 mV
Series Mode
Line Regulation ≤ 0.01%+5 mV
Load Regulation ≤ 300 mV
