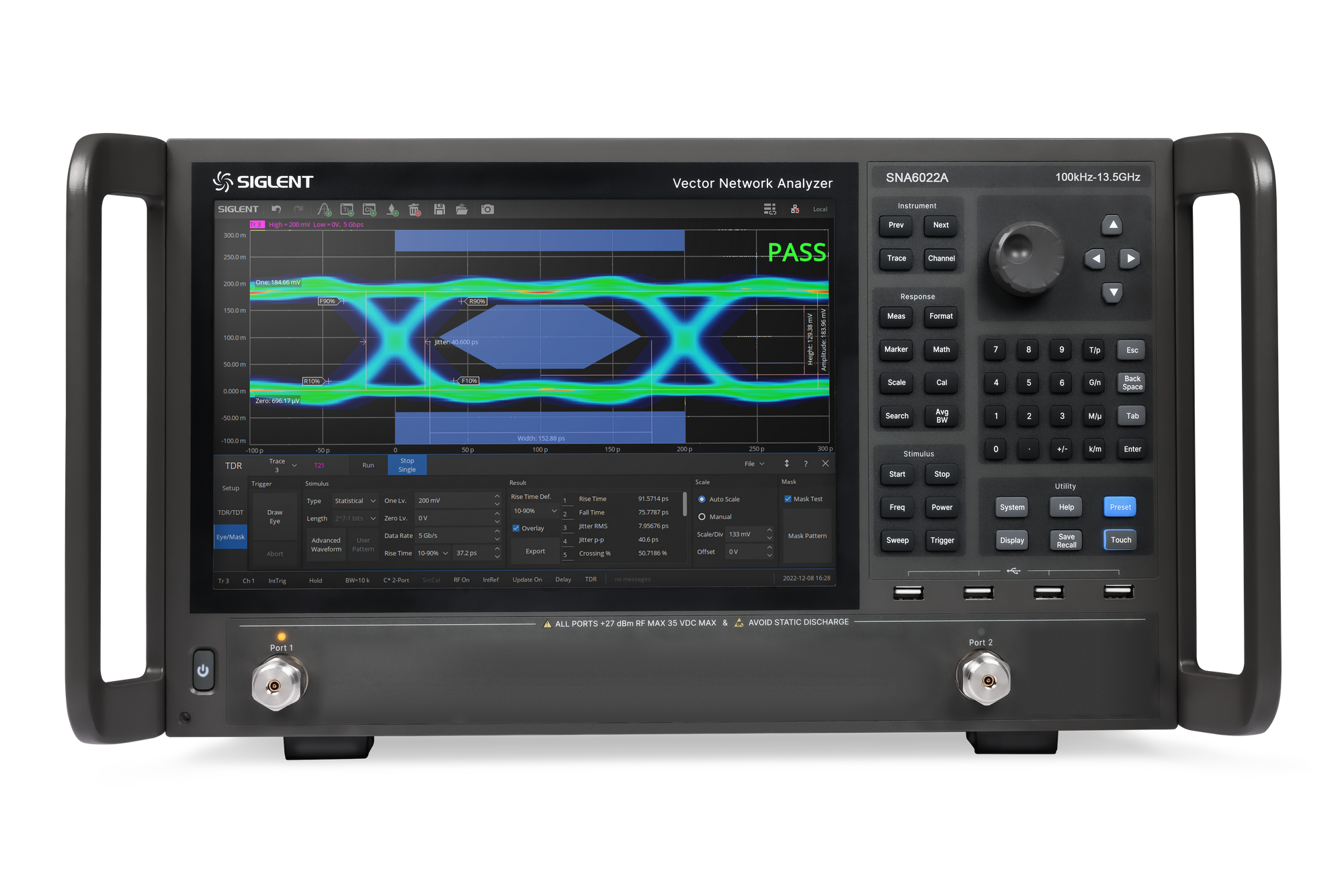

SNA6000A - Vector Network Analyzer

  • Frequency Range: 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz
  • Range of IFBW: 1 Hz to 10 MHz
  • Dynamic Range: 135 dB
  • Setting Range of Output Level: -55 dBm to +10 dBm
  • Standard Bias-Tee connection and pulse hardware
  • 4-port models include standard second source
  • Jumpers / DRA (Source, Ref and Meas) standard on SNA61xxA models
Frequency range 100kHz-13.5/26.5GHz
Frequency resolution 1Hz
Level resolution 0.05dB
Range of IFBW 1Hz~10MHz
Setting range of output level -55dBm ~ +10dBm
Dynamic range 135dB
Types of calibration Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
Support Bias-Tees           Yes
Interface LAN，USB Device，USB Host(USB-GPIB)
Remote control SCPI / Labview / IVI based on USB-TMC / VXI-11/ Socket / Telnet / Webserver
Touch control Multi Touch，Mouse，Keyboard
Screen 12.1-inch touch screen
Video output HDMI
Types of measurement

Scattering-parameter measurement, differential-parameter
measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement




SNA6000A - Vector Network Analyzer
HK$288,974.00 HKD
Add-ons
SNA6000-HPR High-performance reference source (Hardware)
HK$11,060.00 HKD
0
HK$0.00 HKD
SNA6000-TDA Time-Domain analysis (Software)
HK$15,506.00 HKD
0
HK$0.00 HKD
SNA6000-TDR Enhanced Time-Domain analysis (Software)
HK$55,754.00 HKD
0
HK$0.00 HKD
SNA6000-SA Spectrum analysis (Software)
HK$15,662.00 HKD
0
HK$0.00 HKD
SNA6000-SMM Scalar mixer measurement (Software)
HK$25,022.00 HKD
0
HK$0.00 HKD
SNA6000-MT Material Measurement (Software), requires waveguide cal kit KWR42A
HK$43,664.00 HKD
0
HK$0.00 HKD
SNA6000-PM Pulse measurement (Software)
HK$46,550.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$288,974.00 HKD
