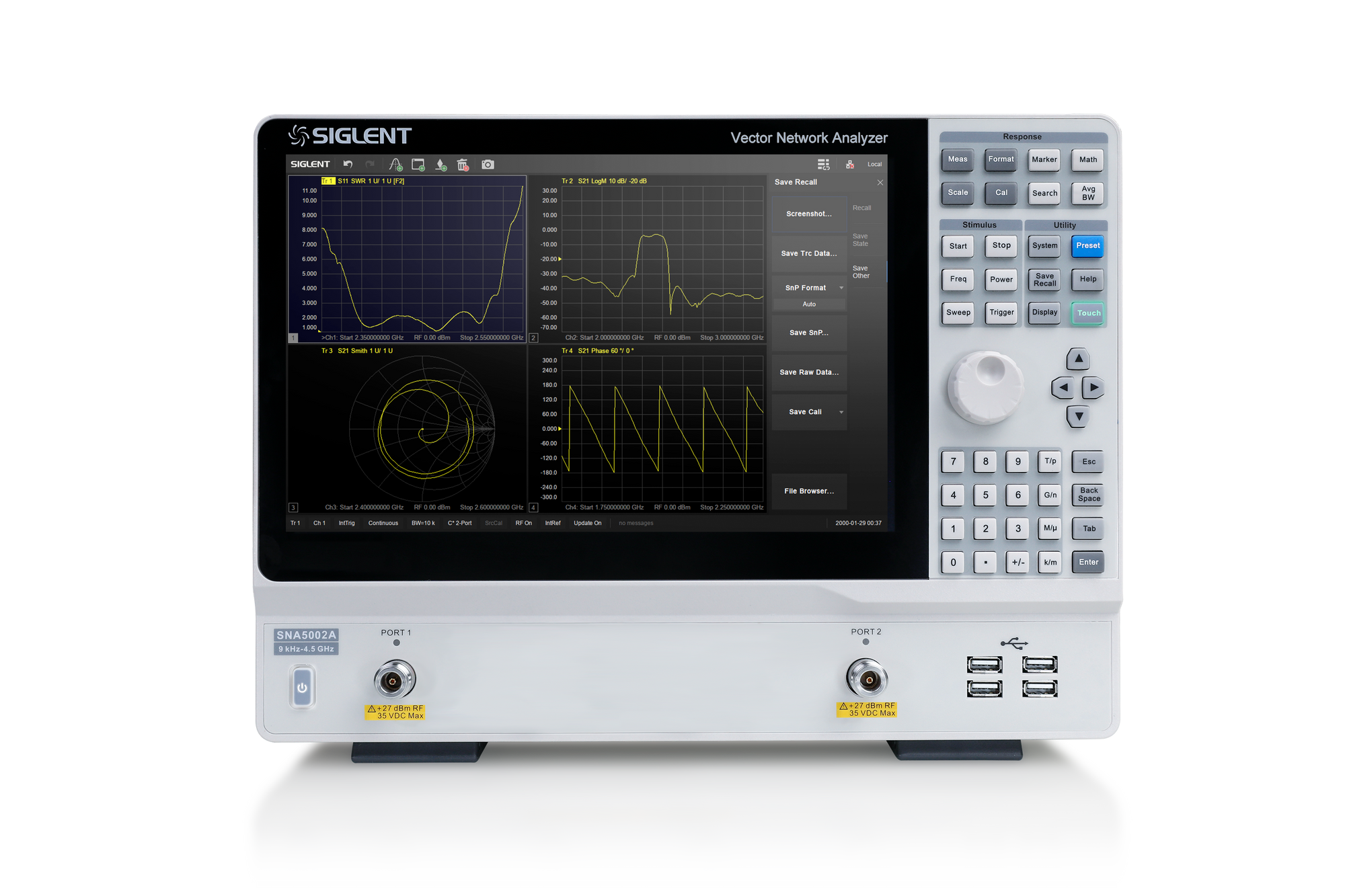

SNA5000A - Vector Network Analyzer

  • Frequency range: 9 kHz ~ 8.5 GHz and 100 kHz - 26.5 GHz
  • Setting range of output level: -55 dBm ~ +10 dBm
  • Dynamic range: 125 dB
  • Support 2/4-ports scattering-parameter, differential-parameter, and time-domain parameter measurements
  • Support one-key measurement of  Q-factor, bandwidth and insertion loss of a filter
  • Support  impedance conversion, fixture simulation and adapter removal/insertion adjustments
  • Optional spectrum analyzer and TDR functions
Frequency range 9kHz - 4.5GHz/8.5GHz and 100kHz-13.5/26.5GHz
Frequency resolution 1Hz
Level resolution 0.05dB
Range of IFBW 1 Hz~10 MHz
Setting range of output level -55dBm ~ +10dBm
Dynamic range 125dB
Types of calibration Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, Full-three port calibration, Full-four port calibration, TRL calibration
Support Bias-Tees           Yes
Interface LAN，USB Device，USB Host(USB-GPIB)
Remote control SCPI / Labview / IVI based on USB-TMC / VXI-11/ Socket / Telnet / Webserver
Touch control Multi Touch，Mouse，Keyboard
Screen 12.1-inch touch screen
Video output HDMI
Types of measurement Scattering-parameter measurement, differential-parameter
measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis, frequency offset, scalar mixer measurement


SNA5000A - Vector Network Analyzer
HK$57,712.00 HKD
Add-ons
SNA5000-HPR High Performance Reference Source
HK$9,352.00 HKD
0
HK$0.00 HKD
SNA5000-TDA Time Domain Analysis (SW)
HK$8,182.00 HKD
0
HK$0.00 HKD
SNA5000-AFR Automatic Fixture Removal (SW)
HK$28,860.00 HKD
0
HK$0.00 HKD
SNA5000-TDR Enhanced Time-Domain analysis(SW) (Buy TDR will get TDA for free)
HK$44,062.00 HKD
0
HK$0.00 HKD
SNA5000-SMM Scalar mixer measurement (SW)
HK$18,408.00 HKD
0
HK$0.00 HKD
SNA5000-SA Spectrum analysis (SW)
HK$11,310.00 HKD
0
HK$0.00 HKD
SNA5000-PV Performance test (SW)
HK$3,120.00 HKD
0
HK$0.00 HKD
SNA5000-PM Pulse measurement (SW)
HK$38,922.00 HKD
0
HK$0.00 HKD
SNA5000-MT Material measurement (SW)
HK$29,640.00 HKD
0
HK$0.00 HKD
SNA5000-VMM Vector mixer measurement (SW)
HK$36,504.00 HKD
0
HK$0.00 HKD
SNA5000-GC Gain compression measurement (SW)
HK$25,584.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$57,712.00 HKD
