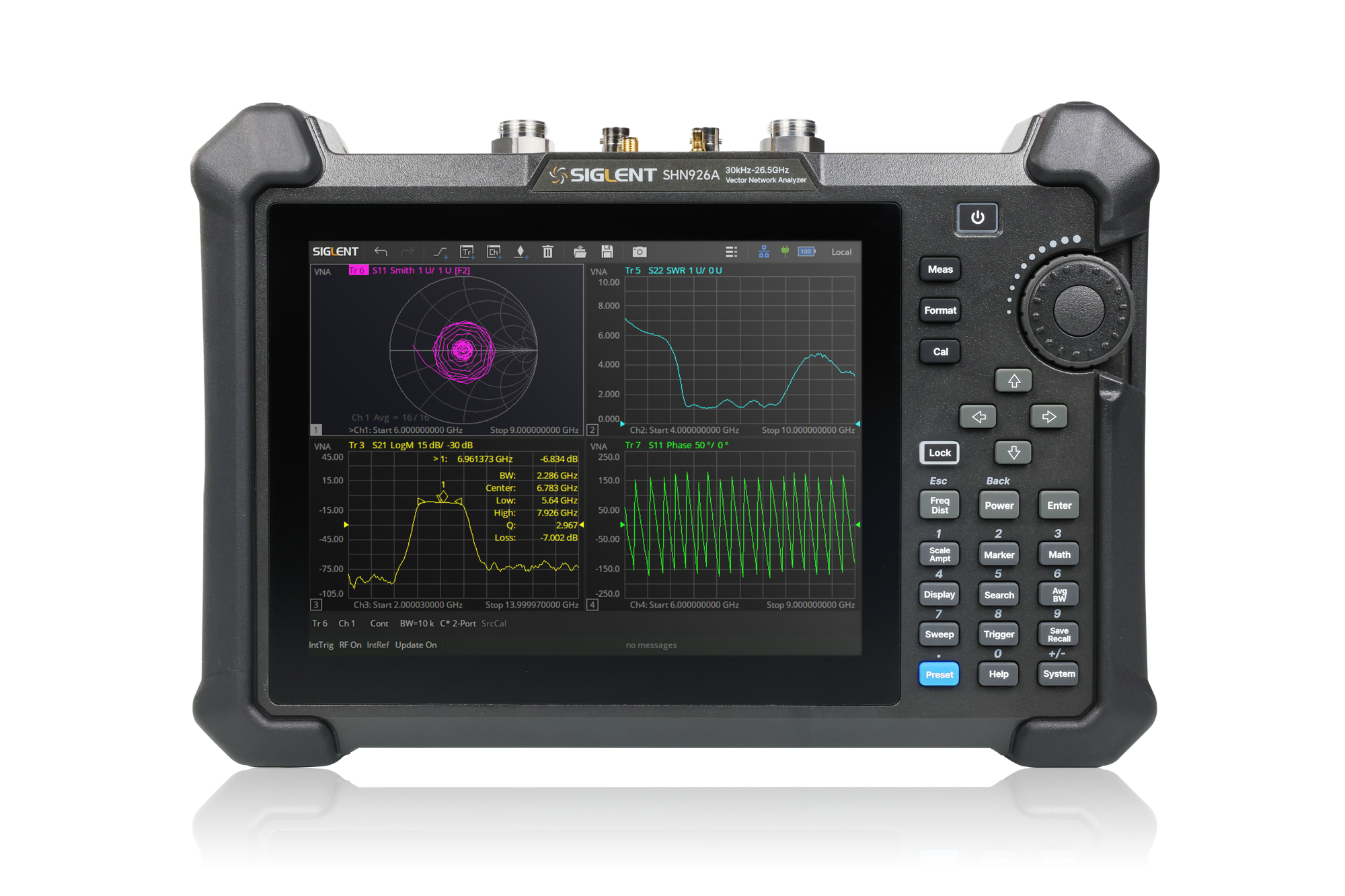

SHN900A - Portable Vector Network Analyzer

  • Standard VNA and CAT mode, Optional SA mode
  • Frequency Range: 30 kHz~26.5 GHz
  • Range of IFBW: 10 Hz~3 MHz
  • Dynamic Range: 110 dB (typ.)
  • Standard Bias-Tee, 4h Working Time
  • Standard GPS, Time and Location Information Saving
  • 2ports: S-parameters, Time Domain, Pulse Measurement
Frequency range SHN914A：30KHz~14GHz
SHN920A：30KHz~20GHz
SHN926A：30KHz~26.5GHz
Frequency resolution 1Hz
Level resolution 0.01 dB
Range of IFBW 10Hz~3MHz
Setting range of output level -45dBm ~ +10dBm
Dynamic range 100dB
Types of calibration Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
Support Bias-Tees           Yes
Interface LAN，USB Device，USB Host(USB-GPIB)
Remote control SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
Touch control Multi Touch，Mouse，Keyboard
Screen 8.4-inch touch screen
Video output HDMI
Types of measurement Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement, pulse measurement


SHN900A - Portable Vector Network Analyzer
HK$129,324.00 HKD
Add-ons
SHN900-TDA Time Domain Analysis (SW)
HK$6,084.00 HKD
0
HK$0.00 HKD
SHN900-TDR Enhanced Time Domain Analysis (SW)
HK$30,264.00 HKD
0
HK$0.00 HKD
SHN900-SA Spectrum Analyzer (SW)
HK$14,976.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$129,324.00 HKD
