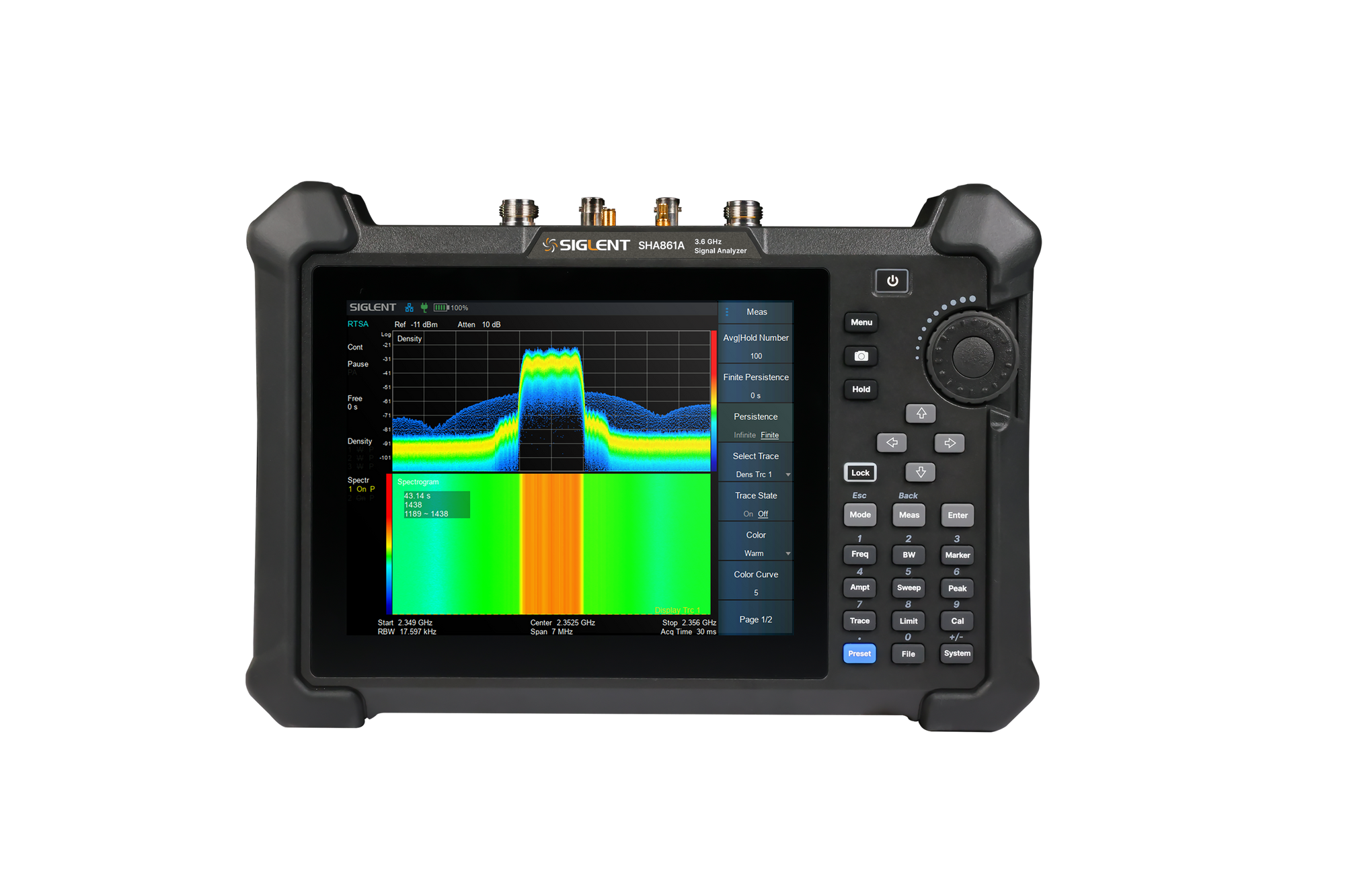

SHA860A - Handheld Signal Analyzer

  • Frequency Range 9 kHz~3.6/7.5 GHz
  • Displayed Average Noise Level -165 dBm/Hz
  • Phase Noise -104 dBc/Hz at 1 GHz, 10 kHz offset
  • Real-Time Analysis Bandwidth 40/110 MHz
  • 5G NR and LTE FDD/TDD OTA Measurement
  • Trace Recording/Playback with GNSS Location
  • Standard Preamplifier, 8.4” Touch Screen, 2.5 hours Working Time
Frequency Range SHA861A: 9 kHz~3.6 GHz
SHA862A: 9 kHz~7.5 GHz
Vector Network Analyzer SHA861A: 100 kHz~3.6 GHz
SHA862A: 100 kHz~7.5 GHz
Frequency Resolution 1 Hz
Advanced Measurement Kit (opt.) CHP, ACPR, OBW, T-Power, Time Domain Power, CNR, Harmonic, TOI, Spectrogram
Displayed Average Noise Level (DANL) <-165 dBm/Hz
Modulation Types (opt.) AM, FM, PM, ASK, FSK, MSK, PSK, DPSK, QAM
Cable and Antenna Analyzer SHA861A: 9 kHz~3.6 GHz
SHA862A: 9 kHz~7.5 GHz
Communication Interface LAN, USB Device, USB Host(USB-GPIB)
TOI +16 dbm
Remote Control Capability SCPI / Labview / IVI based on USB-TMC / VXI-11 / GPIB / Socket / Telnet NI-MAX Web Browser (HTML 5 Supported
SSB Phase Noise <-104 dBc/Hz
Display TFT LCD, 800 × 600, 8.4 inch multi-touch screen
SHA860A - Handheld Signal Analyzer
HK$66,319.00 HKD
Add-ons
SHA860-F2 - SHA861A to SHA862A
HK$38,532.00 HKD
0
HK$0.00 HKD
SHA860-B1A - Analysis Bandwidth 110 MHz
HK$35,724.00 HKD
0
HK$0.00 HKD
SHA860-RTA - Real-Time Spectrum Analysis
HK$29,484.00 HKD
0
HK$0.00 HKD
SHA860-IQA - IQ Data Acquisition
HK$29,484.00 HKD
0
HK$0.00 HKD
SHA860-NR - 5G NR OTA Measurement
HK$33,384.00 HKD
0
HK$0.00 HKD
SHA860-LTE - LTE TDD/FDD OTA Measurement
HK$20,904.00 HKD
0
HK$0.00 HKD
SHA860-AMK - Advanced Measurement Kit
HK$4,524.00 HKD
0
HK$0.00 HKD
SHA860-PU - Pulse Profile Analysis
HK$9,204.00 HKD
0
HK$0.00 HKD
SHA860-AMA - Analog Modulation Analysis
HK$3,744.00 HKD
0
HK$0.00 HKD
SHA860-DMA - Digital Modulation Analysis
HK$6,630.00 HKD
0
HK$0.00 HKD
SHA860-SOR - Source
HK$3,276.00 HKD
0
HK$0.00 HKD
SHA860-CAT - Cable and Antenna Test
HK$9,984.00 HKD
0
HK$0.00 HKD
SHA860-VNA - Vector Network Analysis
HK$12,324.00 HKD
0
HK$0.00 HKD
SHA860-BIAS - Bias Out
HK$1,560.00 HKD
0
HK$0.00 HKD
SHA860-GPS - GPS Receiver
HK$2,184.00 HKD
0
HK$0.00 HKD
SHA860-MAP - Outdoor/Indoor Map
HK$7,644.00 HKD
0
HK$0.00 HKD
EasyMap - Outdoor/Indoor Map Tile Download PC Software
HK$4,524.00 HKD
0
HK$0.00 HKD
SHA860-EMI - EMI Measurement
HK$6,084.00 HKD
0
HK$0.00 HKD
DIG-LVDS-2 Digital Bus Kit-LVDS (With 32 RF cables)
HK$9,118.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$66,319.00 HKD
