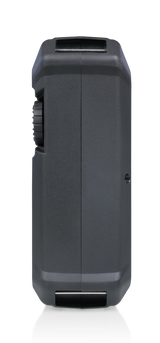

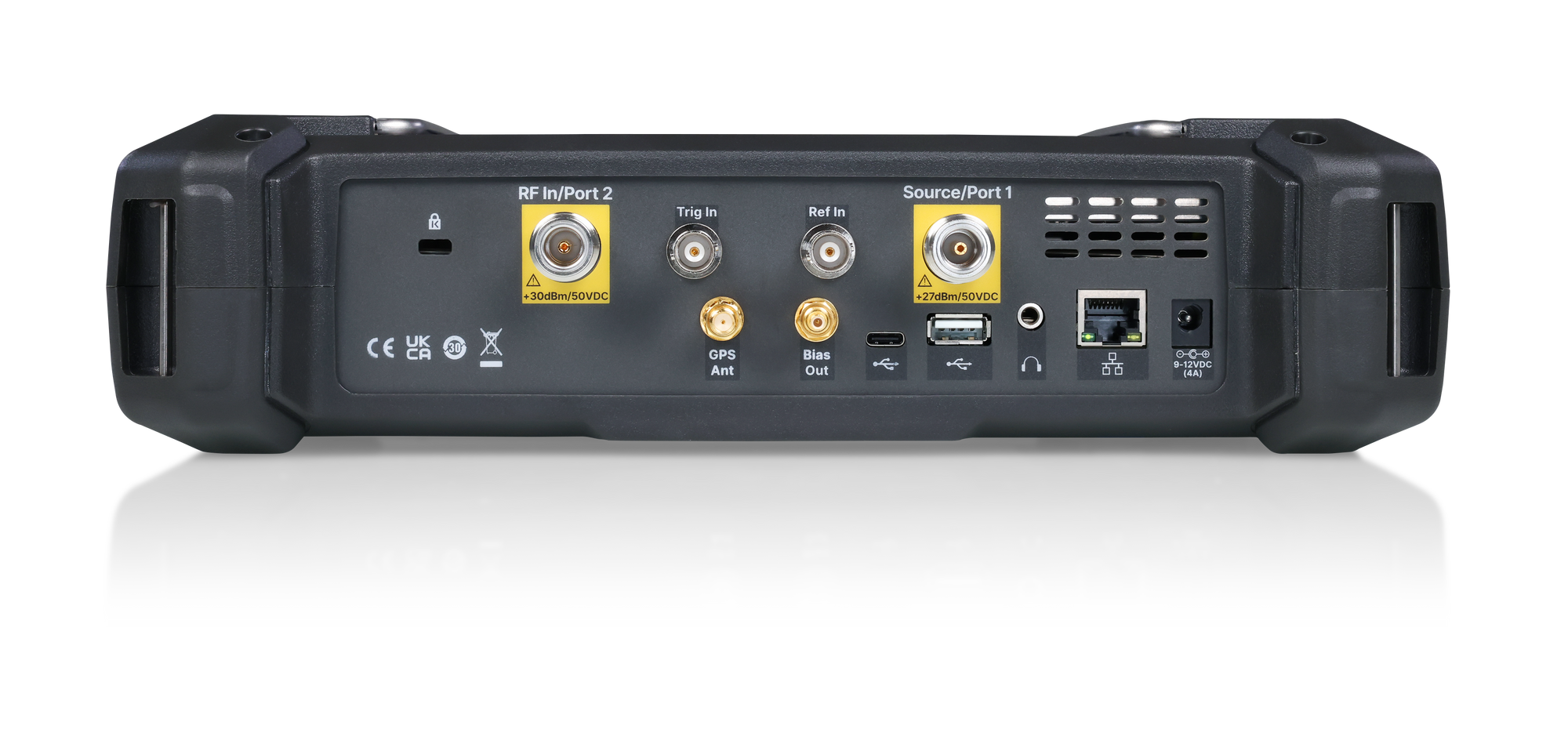

SHA850A - Handheld Spectrum & Vector Network Analyzer

  • Standard SA and CAT mode, optional VNA mode
  • Frequency Range from 9 kHz up to 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -104 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
  • 114 dB Dynamic Range in VNA mode (Typ.)
  • Channel power, ACPR, Harmonics, and TOI measurement option
  • Standard preamplifier, 8.4'' touch screen, 4 hours working time
  • GPS location and logging
Frequency Range SHA851A: 9 kHz~3.6 GHz
SHA852A: 9 kHz~7.5 GHz
Vector Network Analyzer SHA851A: 100 kHz~3.6 GHz
SHA852A: 100 kHz~7.5 GHz
Frequency Resolution 1 Hz
Advanced Measurement Kit (opt.) CHP, ACPR, OBW, T-Power, Time Domain Power, CNR, Harmonic, TOI, Spectrogram
Displayed Average Noise Level (DANL) <-165 dBc/Hz
Modulation Types (opt.) AM, FM, PM, ASK, FSK, MSK, PSK, DPSK, QAM
Cable and Antenna Analyzer SHA851A: 9 kHz~3.6 GHz
SHA852A: 9 kHz~7.5 GHz
Communication Interface LAN, USB Device, USB Host(USB-GPIB)
TOI +16 dbm
Remote Control Capability SCPI / Labview / IVI based on USB-TMC / VXI-11 / GPIB / Socket / Telnet NI-MAX Web Browser (HTML 5 Supported
SSB Phase Noise <-104 dBc/Hz
Display TFT LCD, 800 × 600, 8.4 inch multi-touch screen
SHA850A - Handheld Spectrum & Vector Network Analyzer
HK$33,359.00 HKD
Add-ons
SHA850-F2 - Upgrade SHA851A to SHA852A (SW)
HK$28,236.00 HKD
0
HK$0.00 HKD
SHA850-SOR - 100 kHz~3.6/ 7.5 GHz independent source, -40 dBm ~ 0 dBm (SW)
HK$2,317.00 HKD
0
HK$0.00 HKD
SHA850-VNA - 100 kHz-3.6/7.5 GHz vector network analyzer, vector S11 and S21 measurement (SW)
HK$7,948.00 HKD
0
HK$0.00 HKD
SHA850-AMK - Advanced Measurement Kit (SW)
HK$3,120.00 HKD
0
HK$0.00 HKD
SHA850-AMA - Analog Modulation Analysis (SW)
HK$2,636.00 HKD
0
HK$0.00 HKD
SHA850-DMA - Digital Modulation Analysis (SW)
HK$4,727.00 HKD
0
HK$0.00 HKD
SHA850-BIAS - DC Bias Out, 12V-32V (SW)
HK$1,030.00 HKD
0
HK$0.00 HKD
SHA850-GPS - GPS Receiver (SW)
HK$1,349.00 HKD
0
HK$0.00 HKD
SHA850-MAP - Indoor and outdoor map (SW)
HK$1,349.00 HKD
0
HK$0.00 HKD
SHA850-IQA - IQ data acquisition (SW)
HK$3,705.00 HKD
0
HK$0.00 HKD
SHA850-EMI - EMI measurement kit (SW)
HK$4,360.00 HKD
0
HK$0.00 HKD
10V8_BAT - Rechargeable lithium battery for SHA800A, SHN900A
HK$1,349.00 HKD
0
HK$0.00 HKD
12V_AP_4A - AC-DC adapter for SHA800A, SHN900A
HK$226.00 HKD
0
HK$0.00 HKD
BAG-H2 - Portable bag for SHA800A, SHN900A
HK$546.00 HKD
0
HK$0.00 HKD
ANT-GPS1 - GPS antenna, SMA(M), 100cm
HK$148.00 HKD
0
HK$0.00 HKD
ANT-DA1 - Directional Antenna Suit, N type
HK$51,386.00 HKD
0
HK$0.00 HKD
ANT-DA11 - Contains amplifier handle and 10MHz ~ 200MHz antenna. Antenna gain 10dB (typical value); SWR <1:1.9 (typical value); 50£[/N type, female; polarization direction horizontal and vertical
HK$21,622.00 HKD
0
HK$0.00 HKD
ANT-DA12 - Contains amplifier handle and 200MHz ~ 500MHz antenna. Antenna gain 10dB (typical value); SWR <1:1.9 (typical value); 50£[/N type, female; polarization direction horizontal and vertical
HK$21,622.00 HKD
0
HK$0.00 HKD
ANT-DA13 - Contains amplifier handle and 500MHz ~ 8GHz antenna. Antenna gain 10dB (typical value); SWR <1:1.9 (typical value); 50£[/N type, female; polarization direction horizontal and vertical
HK$25,646.00 HKD
0
HK$0.00 HKD
DIG-LVDS-2 Digital Bus Kit-LVDS (With 32 RF cables)
HK$9,118.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$33,359.00 HKD
