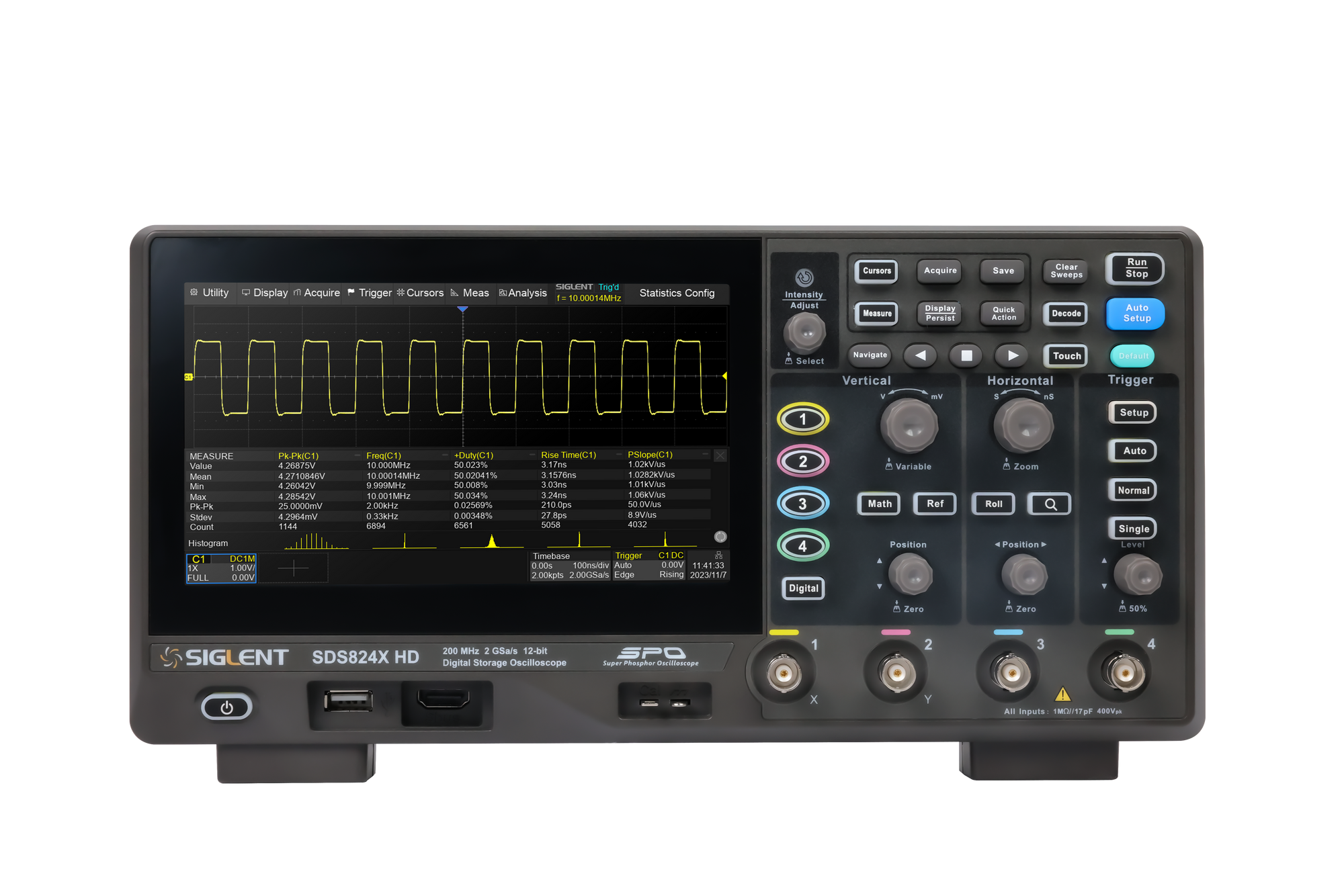

SDS800X HD - Digital Storage Oscilloscope

Main Features

70 MHz, 100 MHz, 200 MHz bandwidth models
12-bit high resolution
Real-time sampling rate up to 2 GSa/s
Memory depth up to 50/100 Mpts
Waveform capture rate up to 500,000 wfm/s (Sequence mode)
7-inch touch screen, support for external mouse and keyboard

Features

Bandwidth	70 MHz 、100 MHz 、200 MHz
Vertical resolution	12-bit
Sample rate	One channel mode: 2 GSa/s,
(Max.)	Two channel mode: 1 GSa/s,
	Four channel mode: 500 MSa/s
Analog channels	4（SDS804X HD、SDS814X HD、SDS824X HD）
	2（SDS802X HD、SDS812X HD、SDS822X HD）
Memory depth	SDS814X HD/SDS812X HD/	SDS824X HD/SDS822X HD：
(Max.)	SDS804X HD/SDS802X HD：
	50 Mpts (One channel mode)	100 Mpts (One channel mode)
	25 Mpts (Two channel mode)	50 Mpts (Two channel mode)
	10 Mpts (Four channel mode)	25 Mpts (Four channel mode)
Waveform capture rate	SDS814X HD/SDS812X HD	SDS824X HD/SDS822X HD：
(Max.)	SDS804X HD/SDS802X HD：
	Normal mode：80,000wfm/s；	Normal mode：120,000 wfm/s
	Sequence mode：500,000wfm/s	Sequence mode：500,000wfm/s；
Serial trigger and decode (Standard)	I2C、SPI、UART、CAN、LIN
Trigger type	Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial
Digital channel	16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts
Math	4 traces
	2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor
Data analysis	Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis
I/O	USB 2.0 Host x2, USB 2.0 Device, 10 M / 100 M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO)
USB AWG module (option)	One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output
Display	7 TFT-LCD with capacitive touch screen (1024*600)
