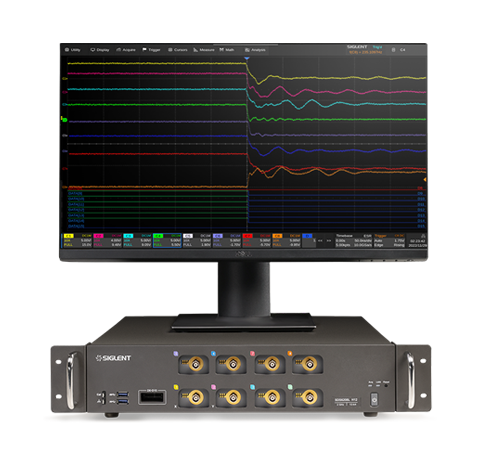

SDS6000L - Low Profile Digital Storage Oscilloscope

  • 500 MHz, 1 GHz, 2 GHz models
  • 8/4 analog channels + 1 external trigger
  • 5 GSa/s (10 GSa/s ESR) per channel
  • Record Length up to 500 Mpts
  • Waveform capture rate up to 750,000 wfm/s (Sequence mode)
  • SYNC-64 to Synchronize 64 x SDS6000L
Bandwidth 500 MHz, 1 GHz, 2 GHz
Sample Rate(Max.) 5 GSa/s (10 GSa/s ESR) per channel
Waveform capture rate(Max.) 750,000 wfm/s (Sequence mode)；
170,000 wfm/s (Normal mode)
Analog channels 8/4 + EXT
Trigger type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B
Data analysis Standard: I2C, SPI, UART, CAN, LIN
Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only)
Digital channel  16-channel; maximum sample rate up to 1 GSa/s; record length up to 50 Mpts
Waveform generator (optional) Single-channel external USB isolated waveform generator, frequency up to 25 MHz, 125 MSa/s sample rate, 16 kpts waveform memory
I/O HDMI (1280*800), USB 3.0 Host x2, USB 2.0 Host x2, USB 2.0 Device (USBTMC), 1000M LAN (SCPI over VXI-11, SCPI over Telnet (port:5024), SCPI over Socket (port:5025), micro SD card, External trigger, Auxiliary output (TRIG OUT,PASS / FAIL), 10 MHz In, 10 MHz Out
Probe (standard) 1x 500 MHz passive probe supplied for each channel
Measurement  50+ parameters, statistics, histogram, trend, and tracking supported


SDS6000L - Low Profile Digital Storage Oscilloscope
HK$244,764.00 HKD
Add-ons
SYN64 64 synchronous module
HK$74,724.00 HKD
0
HK$0.00 HKD
SDS6000L-FG 25 MHz Function/Arbitrary Waveform Generator
HK$3,658.00 HKD
0
HK$0.00 HKD
SPL2016 Logic Probe¡A 16-channel, 500MSa/s
HK$3,627.00 HKD
0
HK$0.00 HKD
SDS6000L-PA Power Analysis: Power Quality, Current Harmonics, Inrush Current, Switching Loss, Slew Rate, Modulation, Output Ripple, Turn On/Off, Transient Response, PSRR, Efficiency
HK$7,722.00 HKD
0
HK$0.00 HKD
DF2001A Deskew fixture for voltage and current probes
HK$2,020.00 HKD
0
HK$0.00 HKD
SDS6000L-EJ Eye Diagram/Jitter Analysis (software)
HK$7,722.00 HKD
0
HK$0.00 HKD
SDS6000L-I2S I2S trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000L-1553B MIL-STD-1553B trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000L-FlexRay FlexRay trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000L-CANFD CAN FD trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000L-SENT SENT trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000L-Manch Manchester decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000L-CANXL CAN XL decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000L-SpaceWire SpaceWire decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000L-USB20 USB2.0 decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000L-ARINC ARINC429 decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$244,764.00 HKD
