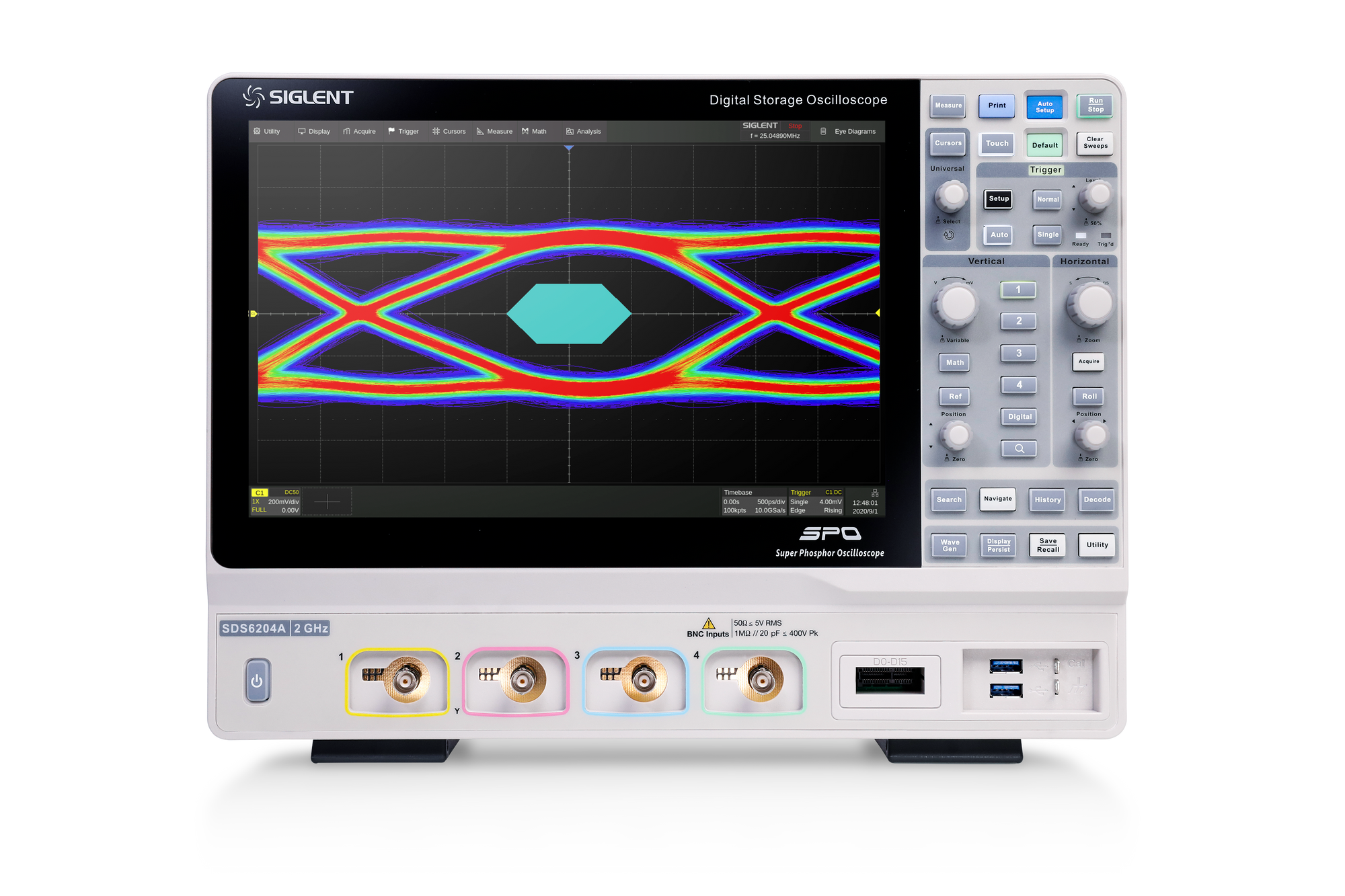

SDS6000A - Digital Storage Oscilloscope

  • 500 MHz, 1 GHz, 2 GHz models
  • 5 GSa/s (10 GSa/s ESR) per channel
  • Record Length up to 500 Mpts
  • Waveform capture rate up to 750,000 wfm/s (Sequence mode)
  • Eye diagram, Jitter analysis, Power analysis, Bode plot, decode, MSO, AWG
  • SAP2500, SAP2500D, 2.5GHz active single ended and differential probes
Bandwidth 500 MHz, 1 GHz, 2 GHz
Sample Rate(Max.) 5 GSa/s (10 GSa/s ESR) per channel
Waveform capture rate(Max.) 750,000 wfm/s (Sequence mode)；
170,000 wfm/s (Normal mode)
Analog channels 4 + EXT
Trigger type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B
Data analysis Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis
Digital channel  16-channel; maximum waveform capture rate up to 1.25 GSa/s; record length up to 62.5 Mpts
Waveform generator (optional) Single channel, frequency up to 25 MHz, 125 MSa/s sample rate, 16 kpts waveform memory
I/O USB 3.0 Host*2, Calibration Signal: 1 kHz,3 V Square, USB 2.0 Host *2, USB 2.0 Device, LAN: 10/100MbaseT (RJ45), Micro SD Card, External Trigger, EXT: ≤1.5 Vrms, EXT/5: ≤ 7.5Vrms, Auxiliary Output: TRIG OUT(3.3 V LVCMOS), PASS/FAIL OUT(3.3 V TTL), HDMI
Probe (standard) 1 probe supplied for each channel
Display  12.1” TFT-LCD with capacitive touch screen (1280*800)


SDS6000A - Digital Storage Oscilloscope
HK$62,322.00 HKD
Add-ons
SAG1021I Isolated USB function/arbitrary waveform generator,125 Msa/s,16 kpts Arb Wave Length,Insulation Voltage 42 Vpk (Hardware)
HK$2,020.00 HKD
0
HK$0.00 HKD
SPL2016 Logic Probe, 16-channel, 1 GSa/s, 50 Mpts/ch
HK$3,627.00 HKD
0
HK$0.00 HKD
SDS6000Pro-PA Power Analysis: Power Quality, Current Harmonics, Inrush Current, Switching Loss, Slew Rate, Modulation, Output Ripple, Turn On/Off, Transient Response, PSRR, Efficiency
HK$7,722.00 HKD
0
HK$0.00 HKD
DF2001A Deskew fixture for voltage and current probes
HK$2,020.00 HKD
0
HK$0.00 HKD
SDS6000Pro-EJ Eye Diagram/Jitter Analysis (SDS6204A only) (software)
HK$7,722.00 HKD
0
HK$0.00 HKD
SDS6000Pro-I2S I2S trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000Pro-1553B MIL-STD-1553B trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000Pro-FlexRay FlexRay trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000Pro-CANFD CAN FD trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000Pro-SENT SENT trigger & decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000Pro-Manch Manchester decode (software)
HK$3,822.00 HKD
0
HK$0.00 HKD
SDS6000Pro-ARINC ARINC429 decode (software)
HK$7,878.00 HKD
0
HK$0.00 HKD
Add-ons subtotal HK$0.00 HKD
Grand total HK$62,322.00 HKD
