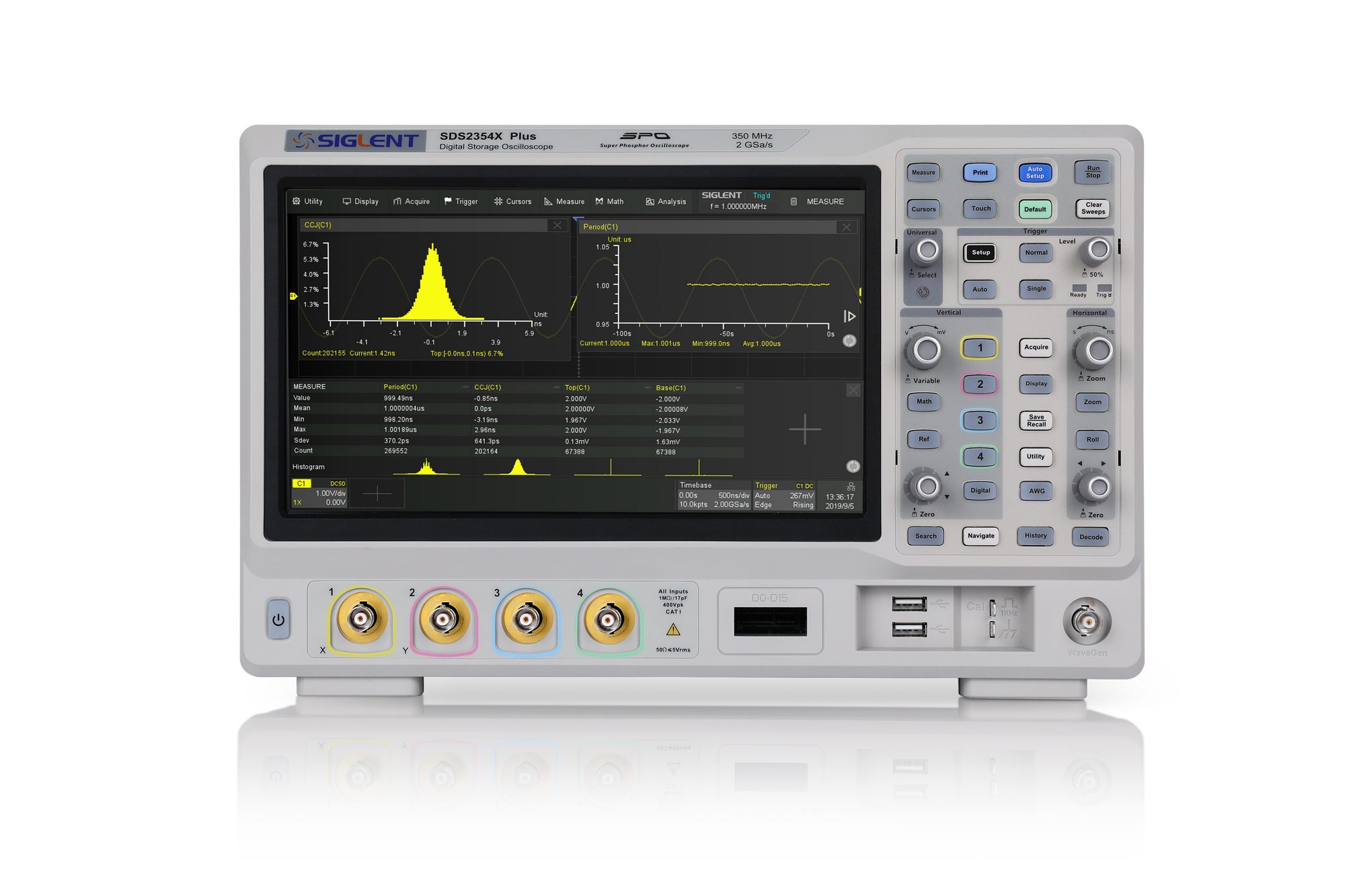

SDS2000X Plus - Super Phosphor Oscilloscope
| Bandwidth | 100 MHz, 200 MHz, 350MHz（upgradable to 500 MHz） |
| Sample Rate(Max.) | 2 GSa/s |
| Waveform Capture rate(Max.) | 500,000 wfm/s |
| Analog Channels | 2/4 + EXT |
| Trigger Type | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial |
| Serial Trigger and decode | Standard: I2C, SPI, UART/RS232, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B |
| Math | 2 traces 2 Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor |
| Measurement | More than 50 parameters，supports statistics with histogram and trend |
| Data processing and analysis tools | Search, Navigate, History, Mask test, Bode plot, Power Analysis (optional) and Counter |
| Digital channel | 16-channel; maximum sample rate up to 500 MSa/s; record length up to 50 Mpts/ch |
| Waveform Generator (optional) | Single channel, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory |
| Interface | USB 2.0 Host x2, USB 2.0 Device, LAN, External trigger, Auxiliary output (TRIG OUT，PASS/FAIL) |
| Probe(standard) | SP2035A, 350 MHz, 1 probe supplied for each channel PP215, 200 MHz, 1 probe supplied for each channel |
| Display | 10.1'' TFT LCD with capacitive touch screen(1024*600) |
