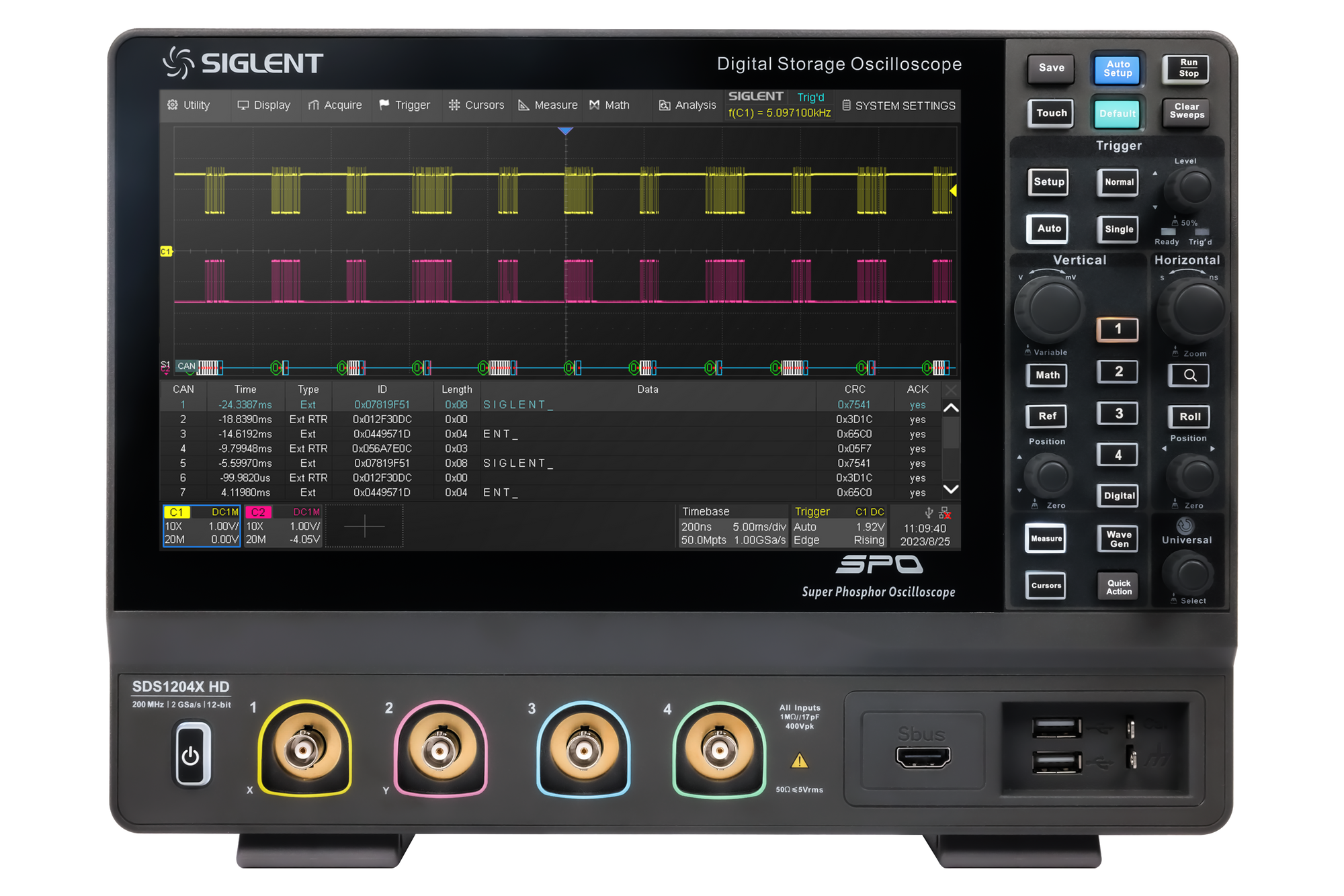

SDS1000X HD - Digital Storage Oscilloscope
| Bandwidth | 100 MHz 、200 MHz |
| Vertical resolution | 12-bit |
| Sample rate (Max.) |
One channel mode: 2 GSa/s, Two channel mode: 1 GSa/s, Four channel mode: 500 MSa/s |
| Analog channels | 2/4 + EXT |
| Memory depth (Max.) |
One channel mode: 100 Mpts/ch, Two channel mode: 50 Mpts/ch, Four channel mode: 25 Mpts/ch |
| Waveform capture rate (Max.) |
Normal mode : 120,000 wfm/s; Sequence mode : 500,000 wfm/s |
| I/O | USB 2.0 Host x3, USB 2.0 Device, 10 M / 100 M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO) |
| Serial trigger and decode (Standard) | I2C, SPI, UART, CAN, LIN, CAN FD(Decode Only), FlexRay(Decode Only) |
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial |
| Digital channel | 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts |
| Math | 4 traces 2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor |
| Data analysis | Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis |
| USB AWG module (option) | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output |
| Display | 10.1 TFT-LCD with capacitive touch screen (1024*600) |
