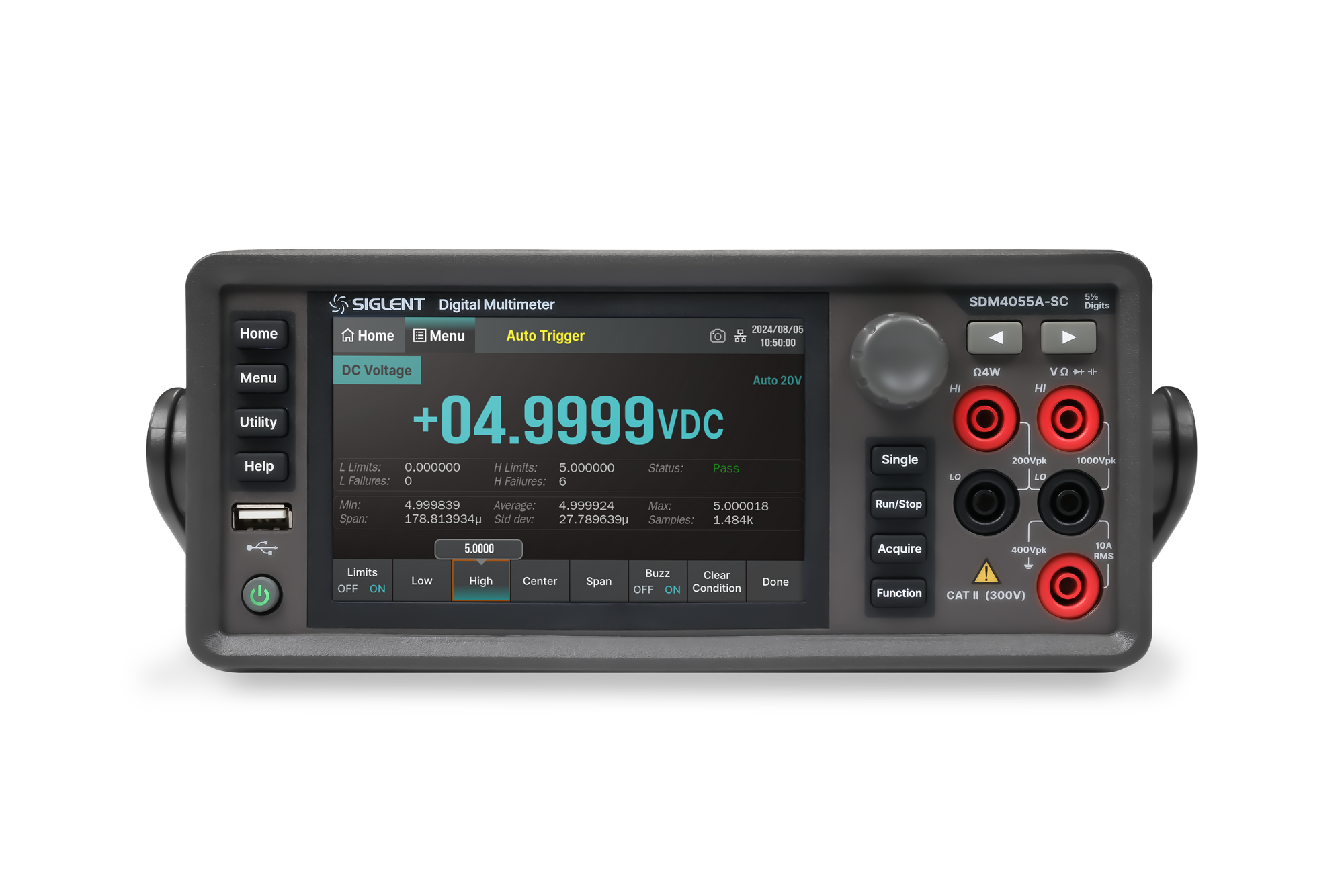

SDM4055A - 5½ Digital Multimeters

  • Real 5½ digits readings resolution (220,000 counts)
  • Reading rate from 5 rdgs/s to 4.8k rdgs/s
  • 512 MB RAM, capable of saving up to 2M readings for caching
  • Equipped with EasyDMM-X host computer control and sampling software
  • 5-inch true color TFT-LCD display
DC Voltage 200 mV ，2 V，20 V，200 V，1000  V
DC Current 200 μA，2 mA，20 mA，200 mA，2 A，10 A
AC Voltage True-RMS，200 mV，2 V，20 V，200 V，750 V
AC Current True-RMS，200 μA，2 mA，20 mA，200 mA，2 A，10 A
2/4-Wire Resistance 200 Ω，2 KΩ，20 KΩ，200 KΩ，1 MΩ，10 MΩ，100 MΩ
Capacitance 2 nF，20 nF，200 nF，2 μF，20 μF，200 μF，2 mF，20 mF，100 mF
Continuity Test Range is fxed at 2 kΩ
Diode Test Adjustable range is 0 - 4 V
Frequency Measurement 3 Hz~1 MHz
Temperature Support for TC and RTD sensor
Math Function Max, Min, Average, Standard Deviation,dBm/dB, Relative Measurement ,Pass/Fail Histogram, Trend Chart, Bar Meter, etc.
Dispay 5-inch TFT-LCD display, 800 * 480
Size 256 MB Nand Flash
Standard Interface USB Device, USB Host, LAN
Optional Interface USB-GPIB Adapter and Scanner Card SC1016
Scanner Card SC1016 Only for SDM4055A-SC


SDM4055A - 5½ Digital Multimeters
HK$5,764.00 HKD
Add-ons
Add-ons subtotal HK$0.00 HKD
Grand total HK$5,764.00 HKD
