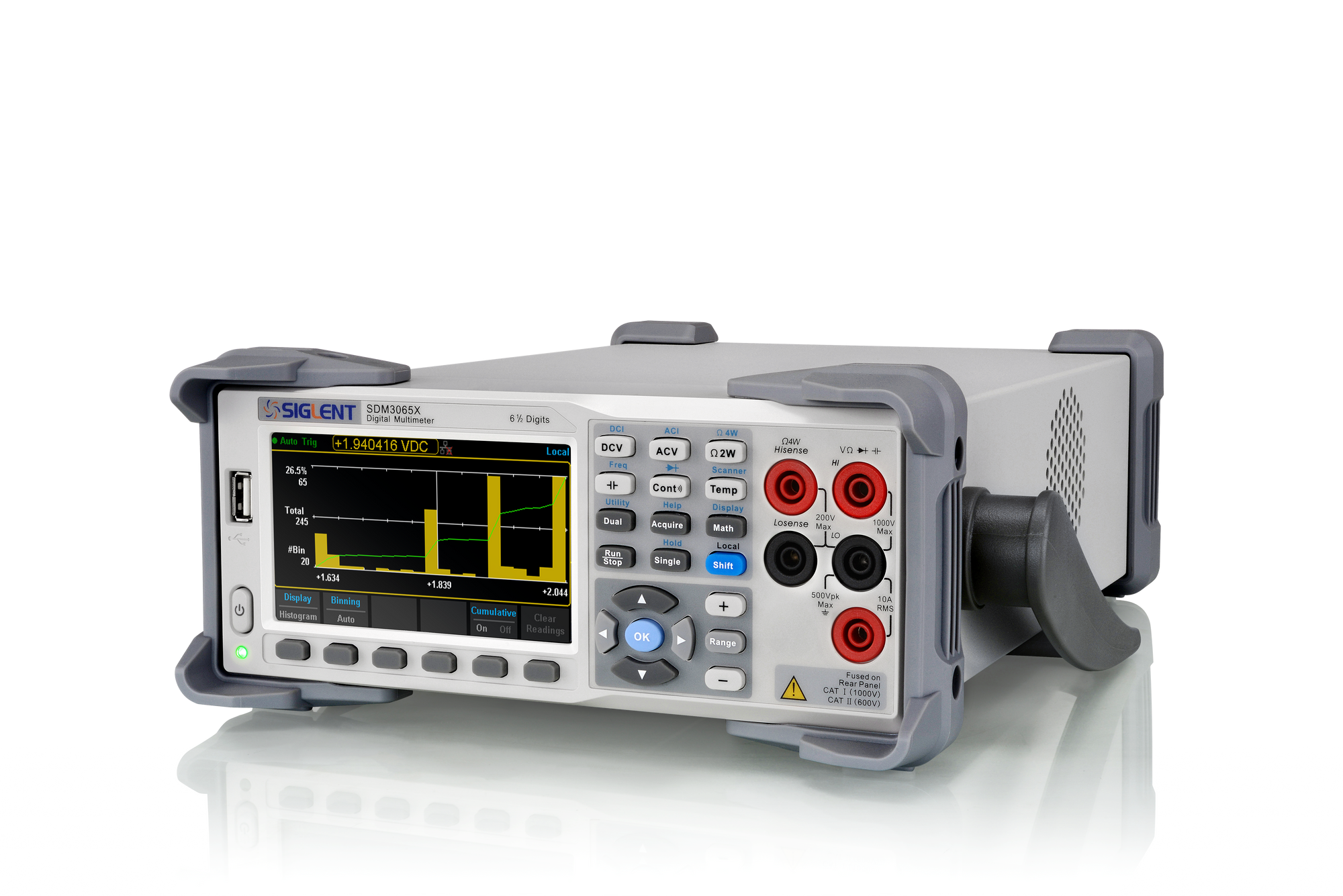

SDM3065X - 6 ½ Digital Multimeters

  • Real  6½ digits readings resolution (2,200,000 counts)
  • 1 Gb Nand flash size, Mass storage configuration files and data files
  • True-RMS AC Voltage and AC Current measuring
  • Standard interfaces: USB Device, USB Host, LAN (Optional Accessories: USB-GPIB Adapter)
  • Optional Scanner for multipoint measurements (-SC part number)
DC Voltage 200 mV ，2 V，20 V，200 V，1000  V
DC Current 200 μA，2 mA，20 mA，200 mA，2 A，10 A
AC Voltage True-RMS，200 mV，2 V，20 V，200 V，750 V
AC Current True-RMS，200 μA，2 mA，20 mA，200 mA，2 A，10 A
2/4-Wire Resistance 200 Ω，2 KΩ，20 KΩ，200 KΩ，1 MΩ，10 MΩ，100 MΩ
Capacitance 2 nF，20 nF，200 nF，2 μF，20 μF，200 μF，2 mF，20 mF，100 mF
Continuity Test Range is fxed at 2 kΩ
Diode Test Adjustable range is 0 - 4 V
Frequency Measurement 3 Hz~1 MHz
Period Measurement 1 μs~0.33 s
Temperature Support for TC and RTD sensor
Math Function Max, Min, Average, Standard Deviation,dBm/dB, Relative Measurement ,Pass/Fail Histogram, Trend Chart, Bar Meter, etc.
Dispay 4.3” TFT-LCD, 480*272
Reading Resolution Real 6½ digits readings resolution (2,200,000 counts)
Size 1 Gb Nand Flash
Standard Interface USB Device, USB Host, LAN
Optional Interface USB-GPIB Adapter and Scanner Card SC1016
Scanner Card SC1016 Only for SDM3065X-SC
