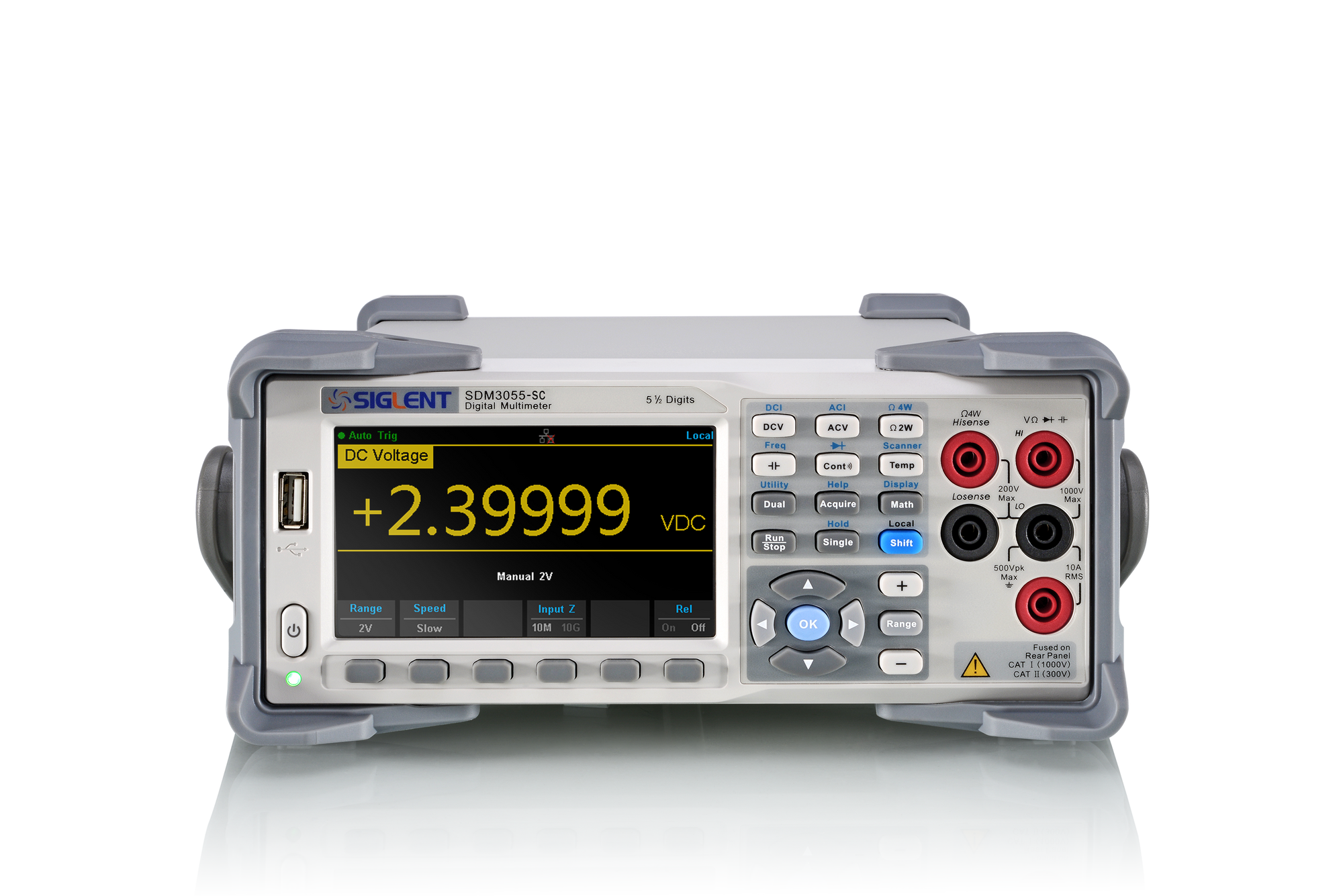

SDM3055 - 5½ Digital Multimeters

  • Real 5½ digits readings resolution ( 240, 000 counts )
  • Up to 150 rdgs/s measurement speed
  • True-RMS AC Voltage and AC Current measuring
  • 1 Gb Nand flash size, Mass storage configuration files and data files
  • Optional Scanner for multipoint measurements (-SC part number)
DC Voltage 200 mV ,2 V,20 V,200 V,1000 V
DC Current 200 μA,2 mA,20 mA,200 mA,2 A,10 A
AC Voltage True-RMS,200 mV,2 V,20 V,200 V,750 V
AC Current True-RMS,20 mA,200 mA,2 A,10 A
2/4-Wire Resistance 200 Ω,2 kΩ,20 kΩ,200 kΩ,2 MΩ,10 MΩ,100 MΩ
Capacitance 2 nF,20 nF,200 nF,2 μF,20 μF,200 μF,1000 μF
Continuity Test Range is fxed at 2 kΩ
Diode Test Adjustable range is 0 ~ 4 V
Frequency Measurement 20 Hz~1 MHz
Period Measurement 1 μs~0.05 s
Temperature Support for TC and RTD sensor
Math Function Max, Min, Average, Standard Deviation,dBm/dB,Relative Measurement, Pass/Fail Histogram, TrendChat
Display 4.3” TFT-LCD, 480*272 display
Reading Resolution Real 5½ digits readings resolution ( 240,000 counts )
Size 1 Gb Nand Flash
Standard Interface USB Device,USB Host,LAN
Optional Interface USB-GPIB
Scanner Card SC1016 Only for SDM3055-SC


SDM3055 - 5½ Digital Multimeters
HK$3,892.00 HKD
Add-ons
Add-ons subtotal HK$0.00 HKD
Grand total HK$3,892.00 HKD
