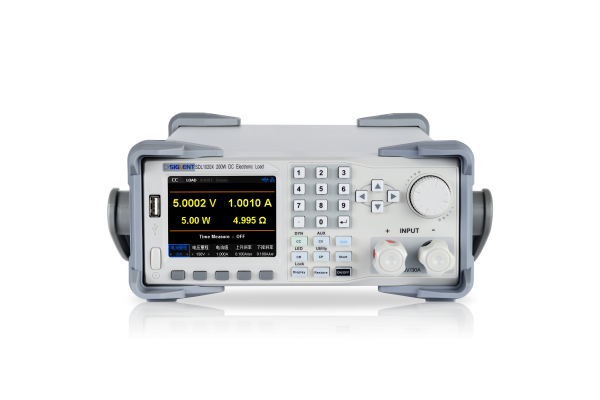

SDL1000X/X-E - Programmable DC Electronic Load

  • DC 150 V/30 A, maximum total power 300 W/200 W
  • Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs
  • Four static/dynamic modes: CC/CV/CP/CR
  • Readback resolution 0.1 mV, 0.1 mA
Output SDL1020X/X-E(Single channel):DC 150 V / 30 A，total power 200 W
SDL1030X/X-E(Single channel ):DC 150 V / 30 A,total power 300 W
4 Modes CC/CV/CR/CP
CC Dynamic mode Continuous, pulsed, toggled
Frequency(Max.) CC Dynamic mode: 25 kHz
CP Dynamic mode:12.5 kHz
CV Dynamic mode:0.5 Hz
Current Rise Time Range 0.001 A/μs~2.5 A/μs
Readback Resolution SDL1000X：0.1 mV，0.1 mA
SDL1000X-E：1 mV，1 mA
Protection Mode OCP, OVP, OPP, OTP and LRV protection
Other Function List operation function,Auto-test,Battery discharge function,OCPT/OPPT mode,External analog control
Display 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
Interface Built-in RS232/USB/LAN communication interface, USBGPIB module (optional)


SDL1000X/X-E - Programmable DC Electronic Load
HK$5,374.00 HKD
Add-ons
Add-ons subtotal HK$0.00 HKD
Grand total HK$5,374.00 HKD
