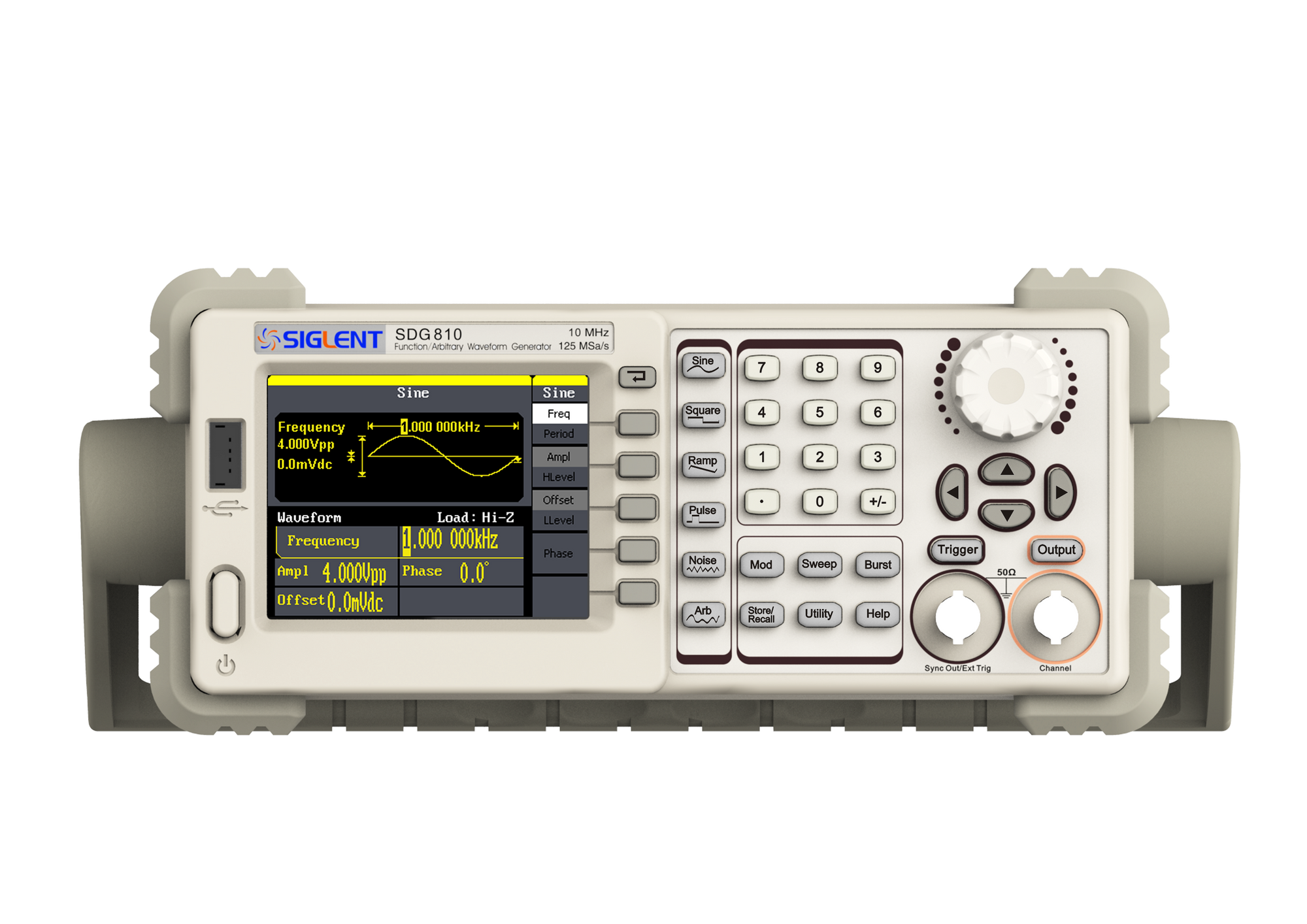

SDG800 - Function/Arbitrary Waveform Generators

  • Sine wave frequency up to 30 MHz
  • 125 MSa/s Sampling Rate, 14 bit vertical resolution
  • 16 kpts Arbitrary Waveform Length
  • Abundant Modulation types: AM\DSB-AM\FM\PM\FSK\ASK\PWM\SWEEP\BURST
  • Standard Arbitrary wave edit software
  • 3.5 inch display
Bandwidth 10 MHz、30 MHz
Sample Rate 125 MSa/s
Channels 1
Arbitrary Waveform Length 16 Kpts
Frequency Resolution 1 μHz
Vertical Resolution 14 bit
Waveform Sine,Square,Ramp,Pulse,Gaussian white noise,46 types of built-in Arb
Max.Amplitude ±10 V
Size Width×Height×Depth=229 mm×105 mm×281 mm
Interface USB Host, USB Device
Modulation Types AM、 FM、PM、FSK、ASK、DSB-AM、PWM、Sweep、Burst


SDG800 - Function/Arbitrary Waveform Generators
HK$1,630.00 HKD
Add-ons
Add-ons subtotal HK$0.00 HKD
Grand total HK$1,630.00 HKD
