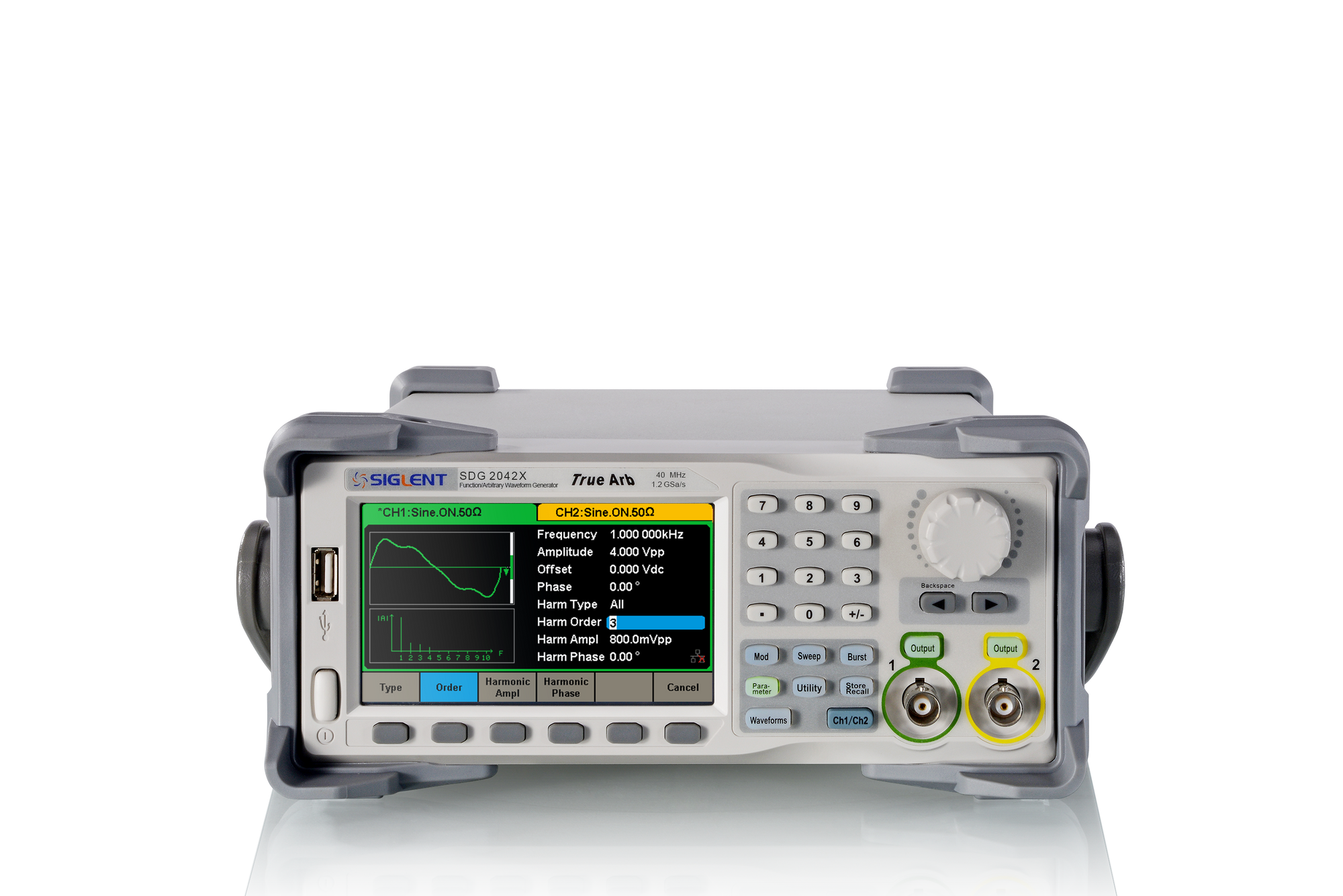

SDG2000X - Function/Arbitrary Waveform Generators

  • Dual output channels
  • Maximum 120 MHz output frequency
  • 1.2 GSa/s Sampling rate, 16 bit vertical resolution
  • TrueArb technology, Arbitrary wave length 8 – 8 Mpts
  • Low jitter square and pulse wave
  • Pulse width and rise/fall time finely adjustable
Bandwidth 40 MHz，80 MHz，120 MHz
Sample Rate 1.2 GSa/s（4X Interpolation）
Channels 2
Arbitrary Waveform Length 8 pts ~ 8 Mpts
Square Frequency 1 μHz ~ 25 MHz
Pulse Frequency 1 μHz ~ 25 MHz
Vertical Resolution 16 bit
Max.amplitude ±10 V
Display 4.3 inch touch screen, 480 x 272 x RGB
Interface Standard : USB Host, USB Device, LAN
Option : GPIB (USB-GPIB adapter )
Modulation AM、 FM、PM、FSK、ASK、PSK、DSB-AM、PWM
Built-in Frequency Meter Support


SDG2000X - Function/Arbitrary Waveform Generators
HK$3,892.00 HKD
