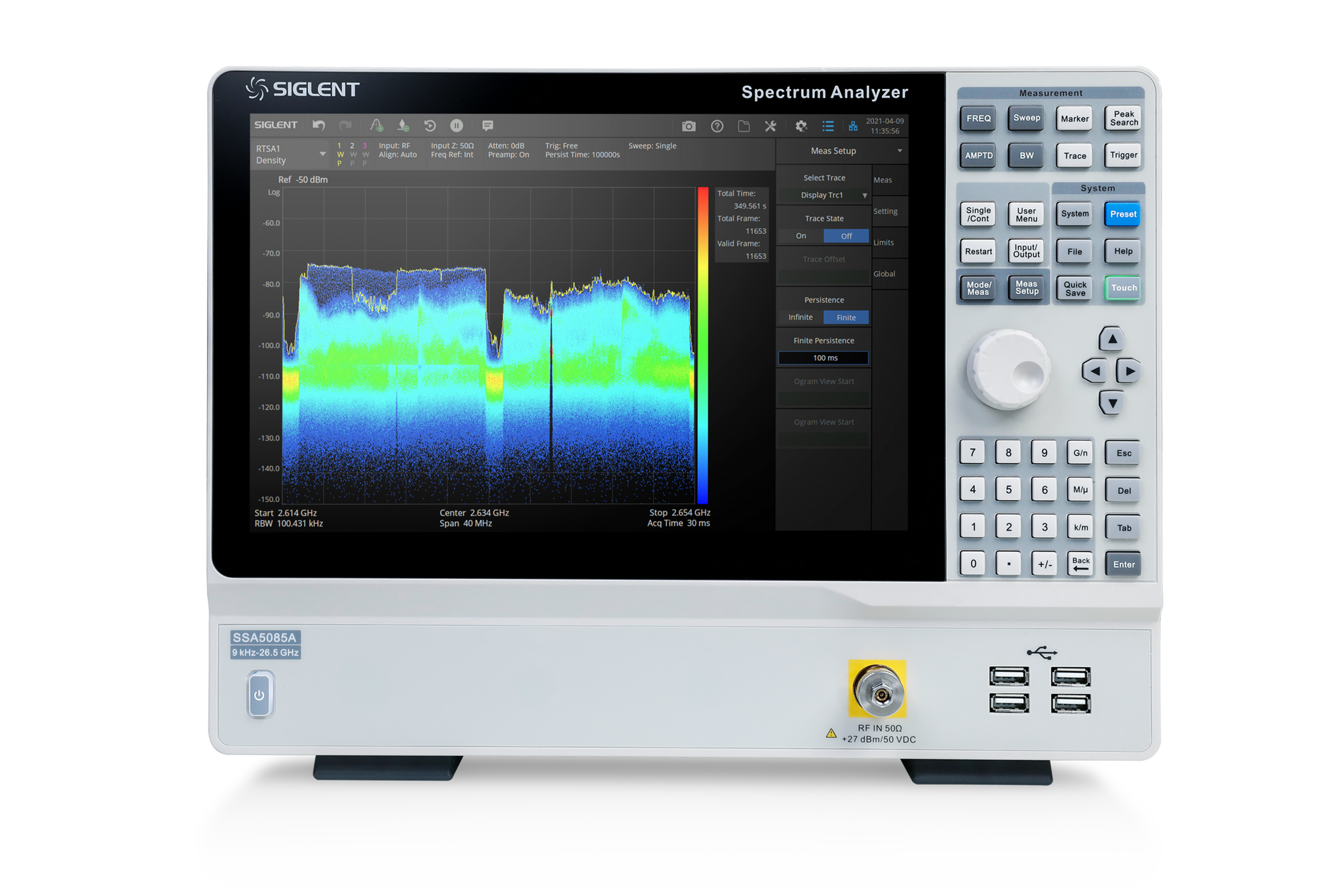

SSA5000A Series
The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis with a frequency range of 9 kHz up to 13.6 GHz/26.5 GHz.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and bluetooth surveying, research and development, education, production, and maintenance.
The SSA5000A series has real-time spectrum analysis capability. The analyzer can provide multi-dimensions data displays, advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, spectrum interference.

    SSA5000A Series

    $18,010.00Price

    • Frequency Range: 9 kHz ~ 26.5 GHz Models
      Resolution Bandwidth: 1 Hz ~10 MHz
      DANL:  -165 dBm/Hz
      Phase Noise:< -105 dBc/Hz @ 1 GHz typ.

      Main Features:

      • Frequency Range from 9 kHz up to 13.6 /26.5 GHz
      • -165 dBm/Hz Displayed Average Noise Level (Typ.)
      • -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
      • 25 MHz/40 MHz Analysis Bandwidth
      • Analog Modulation Analysis and Vector Digital Modulation Analysis
      • Channel power, ACPR, OBW, Harmonic, TOI measurement etc.

      Dimension: 378mm x 284mm x 126mm
      Net Weight: 7.4kg

    Siglent Technologies

    SIGLENT is a global leader in the design and manufacture of electronic test and measurement instruments such as Oscilloscopes, Waveform Generators, Spectrum Analyzers, RF Signal generators, Vector Network Analyzers, Digital Multimeters. We are based in Hong Kong and serve customers in Asia.
